XM Receiver Replacement

XM Receiver Replacement

With XM

1. Remove the right rear side trim panel Interior Trim Removal/Installation - Rear Side Area.

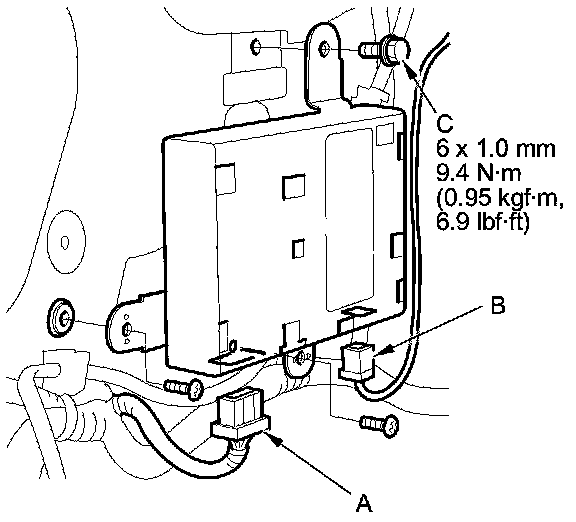

2. Disconnect the XM receiver connector (A) and the XM antenna lead connector (B).





3. Remove the bolt (C) and screws, then remove the XM receiver.

4. Install the XM receiver in the reverse order of removal.
