Front Door Weatherstrip: Service and Repair

Front Door Weatherstrip Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the door.
- Use a clip remover to remove the clips.

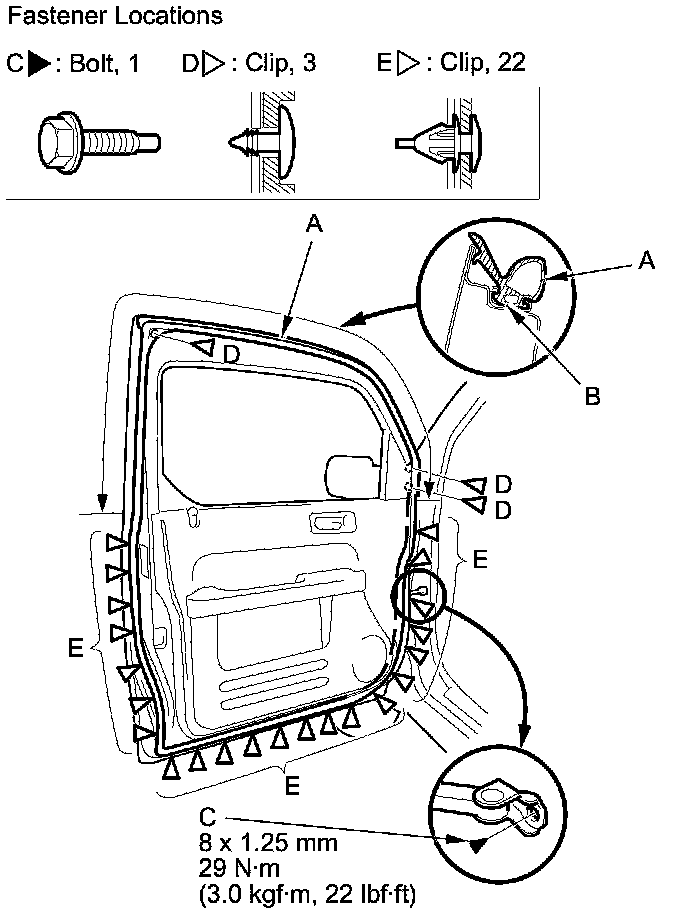

1. Remove the door weatherstrip (A) from the holder (B).

1. Remove the door checker mounting bolt (C) at the A-pillar.

2. Detach the clips (D, E).





2. Install the weatherstrip in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the weatherstrip is installed in the holder securely.
- Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
- Check for water leaks.
