Rear Door Latch: Adjustments

Rear Door Unlock Synchronization Adjustment

1. Remove these items:

- Door panel Service and Repair
- Plastic cover, as needed Locations

2. Install the inner handle by securing the screws.

3. Close the door securely.

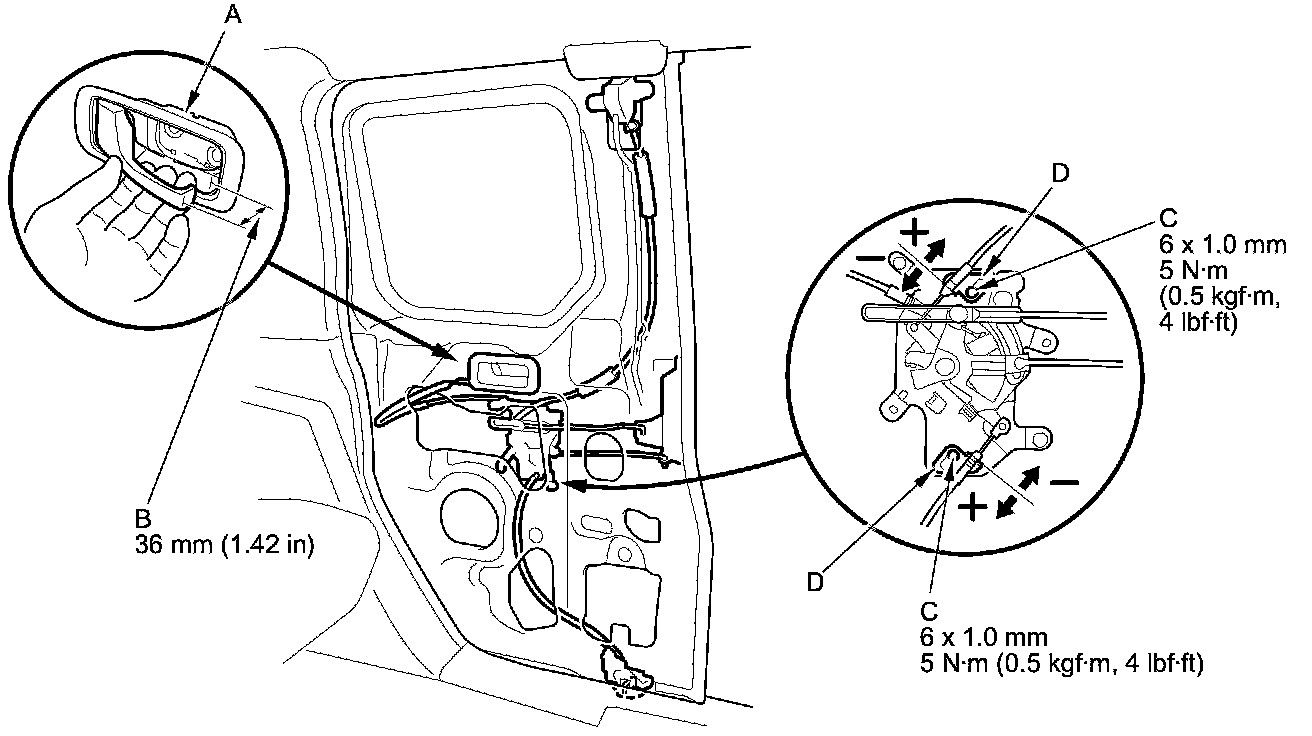

4. Pull the inner handle (A), and measure the inner handle stroke (B) when unlocking the door.





- If the inner handle stroke is less than the specification, loosen the bolts (C) slightly, and move the plates (D) in the direction shown by the minus arrow.
- If the inner handle stroke is more than the specification, loosen the bolts slightly, and move the plates in the direction shown by the plus arrow.





5. Tighten the bolts, and recheck the inner handle stroke.

6. Remove the inner handle, and make sure the plastic cover is installed properly.
