Hatch Adjustment

Hatch Adjustment

1. Close the tailgate securely.

2. Remove the hatch support strut from each side Hatch Support Strut Replacement.

3. Slightly loosen the hatch hinge mounting bolts (A) and the striker mounting bolts (B).

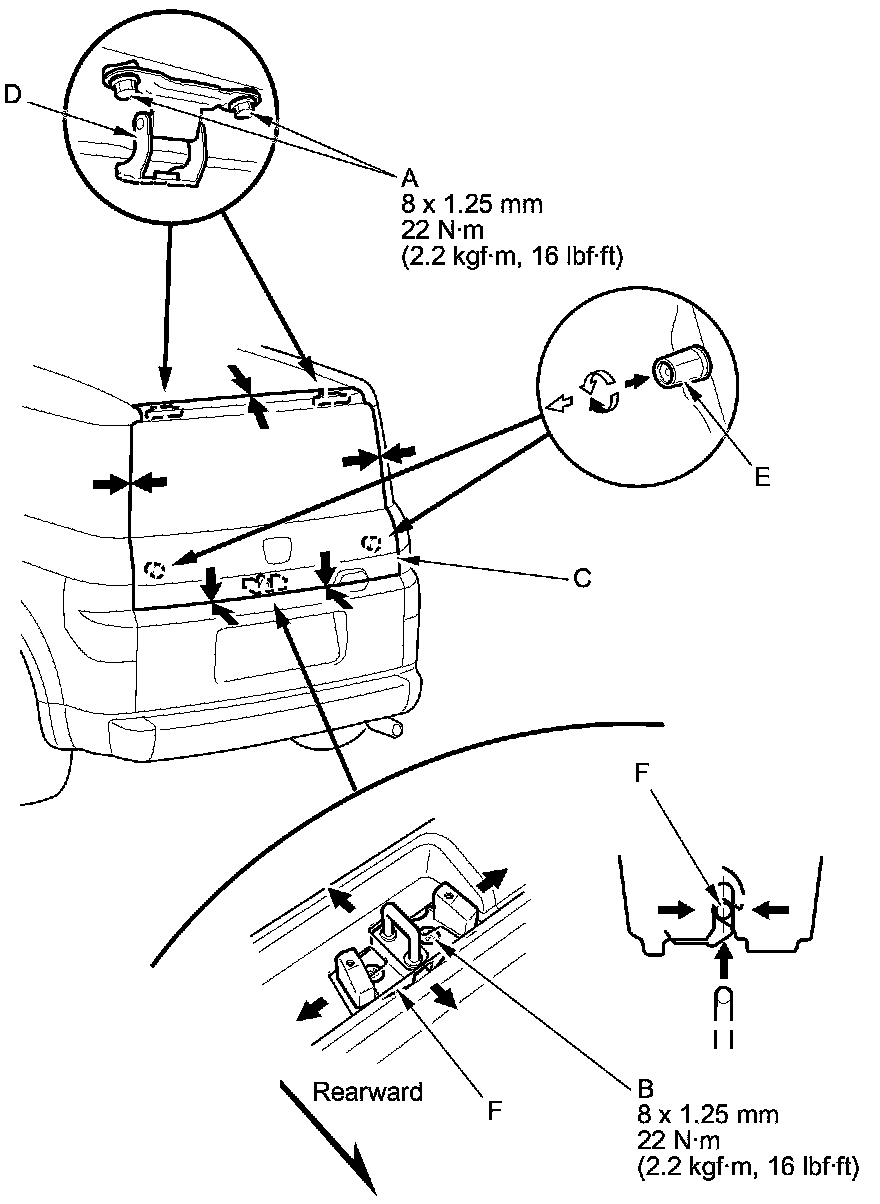

4. Adjust the hatch (C) alignment in the following sequence:

- Pull down the rear area of the headliner Service and Repair. Take care not to bend the headliner excessively. Adjust the hatch hinges (D) right and left, as well as forward and rearward, using the elongated holes.
- Turn the hatch edge cushions (E), in or out as necessary, to make the hatch fit flush with the body at the side edges.
- Adjust the fit between the hatch and the hatch opening by moving the striker (F).

5. Tighten each bolt to the specified torque.

6. Check that the hatch opens properly and locks securely.

7. Reinstall the support struts.

8. Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

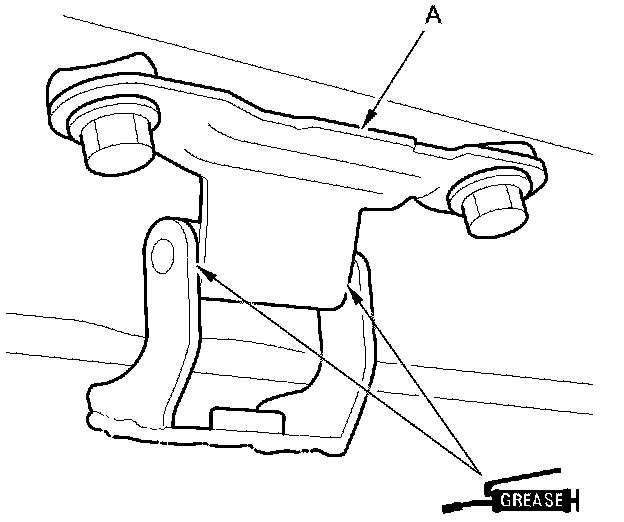

9. Apply multipurpose grease to the pivot area of the hatch hinges (A) on both sides as indicated by the arrows.
