Power Trunk / Liftgate Lock Actuator: Testing and Inspection

Hatch Lock Actuator Test

1. Remove the hatch trim panel Interior Trim Removal/Installation - Hatch Area.

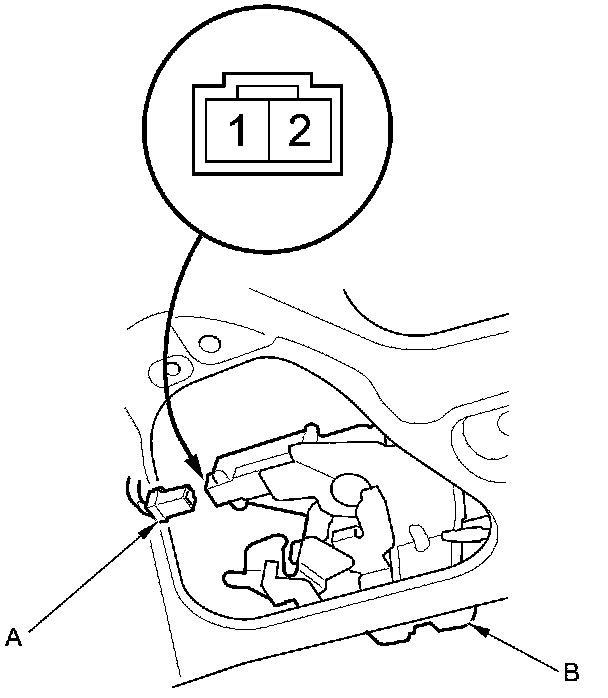

2. Disconnect the 2P connector (A) from the actuator (B).

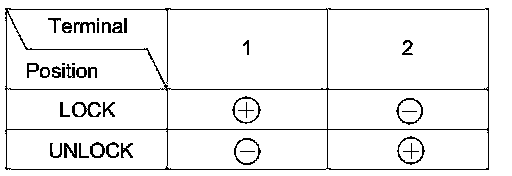

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





4. If the actuator does not operate as specified, the hatch lock actuator is faulty; replace the hatch latch Hatch Latch Replacement.
