Tailgate Handle Replacement

Tailgate Handle Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the tailgate.

1. Remove the tailgate lower trim panel .

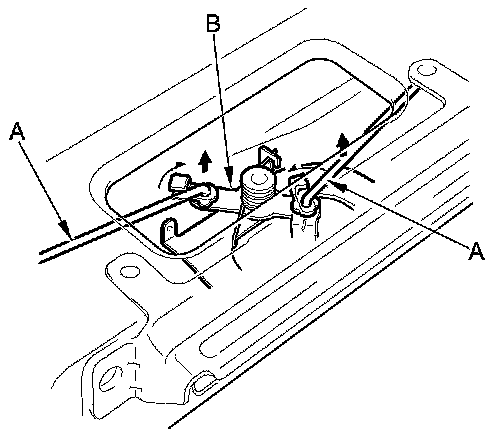

2. Disconnect the tailgate opener rods (A) on both sides from the tailgate handle (B).

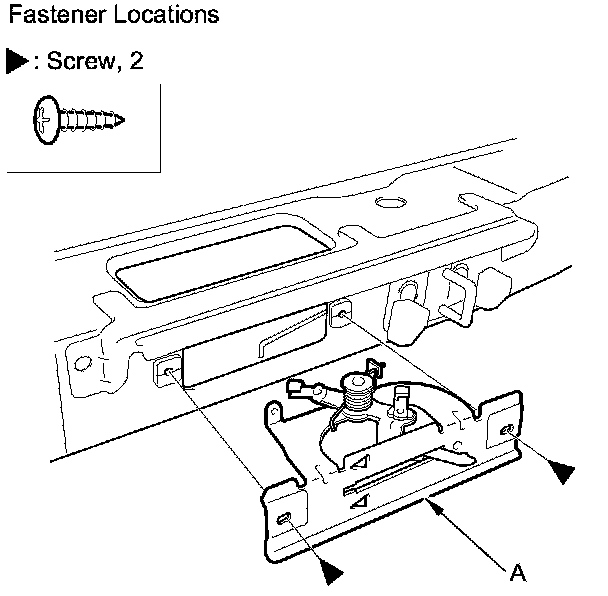

3. Remove the screws, then remove the tailgate handle (A).





4. Install the handle in the reverse order of removal, and note these items:

- Make sure each rod is connected securely.
- Make sure the tailgate opens properly and locks securely.
