Hatch Weatherstrip Replacement

Hatch Weatherstrip Replacement

1. Remove these items:

- Cargo floor lid Interior Trim Removal/Installation - Cargo Area
- Rear trim panel Interior Trim Removal/Installation - Cargo Area
- Tailgate support cables, both sides Tailgate Support Cable Replacement

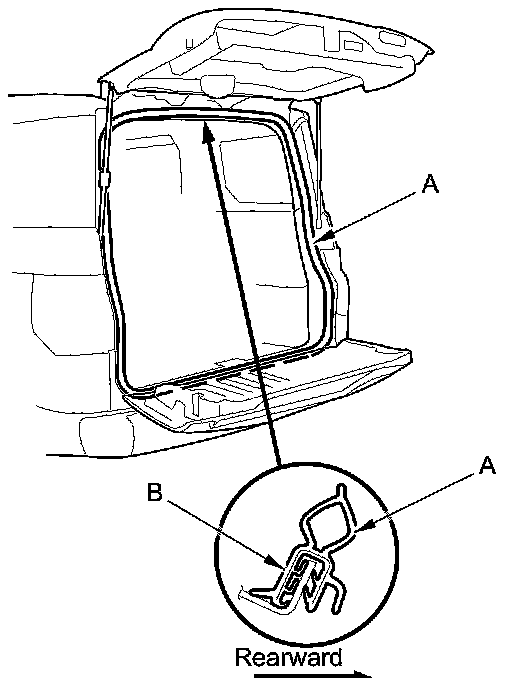

2. Remove the hatch weatherstrip (A) by pulling out it.





3. Locate the painted alignment mark (B) on the hatch weatherstrip. Align the painted mark with the alignment tab in the center of the hatch opening, and install the hatch weatherstrip all the way around in the direction shown. Make sure there are no wrinkles in the weatherstrip.

4. Reinstall the removed parts in reverse order of removal.

5. Check for water leaks.
