A-Pillar Corner Trim Replacement

A-Pillar Corner Trim Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the body or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Open the door.

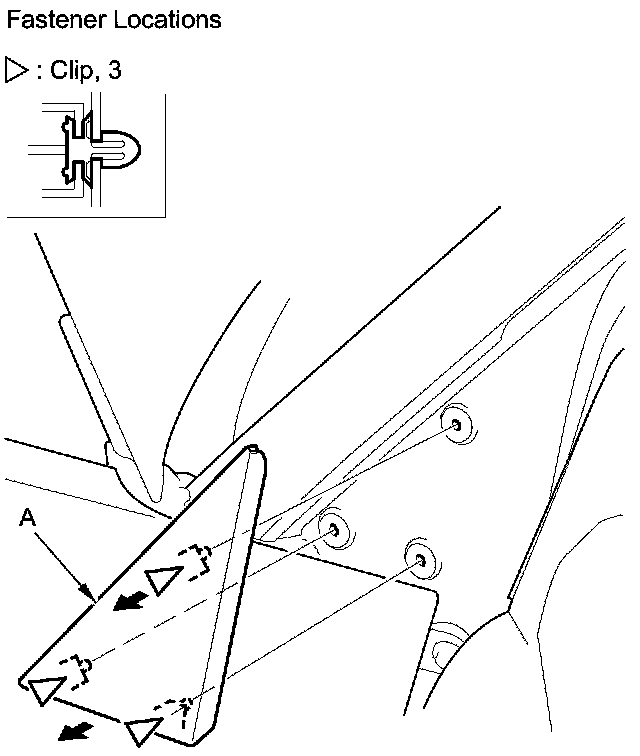

2. Remove the A-pillar corner trim (A).

1. Apply protective tape around the body to prevent damage.

2. Carefully insert the appropriate trim tool next to the clips, and pry on the trim to detach the clips.





3. If the clips are damaged or stress-whitened, replace them with new ones.

4. Hold up the A-pillar corner trim, and fit the clips into the holes in the body, then push on the trim until the clips snap into place.
