Door Lock Knob Switch Test

Door Lock Knob Switch Test

1. Remove the driver's door panel Service and Repair.

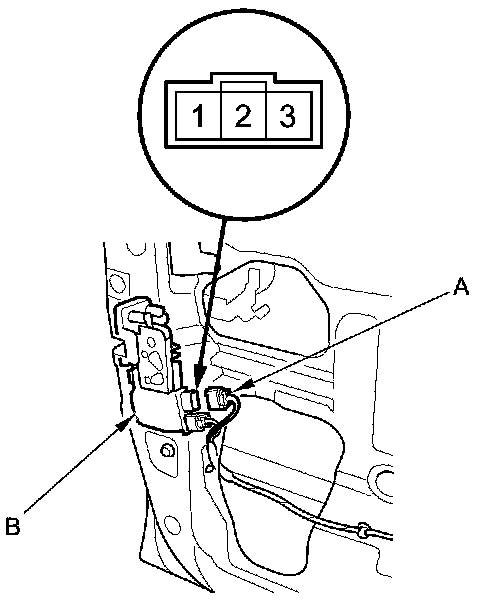

2. Disconnect the 3P connector (A) from the driver's door lock actuator (B).

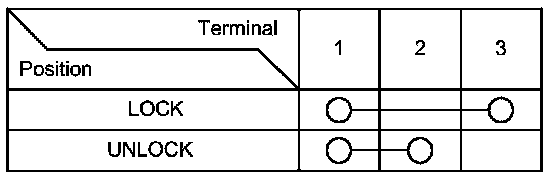

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, the door lock knob switch is faulty; replace the driver's door latch Service and Repair.
