Power Mirror Motor: Service and Repair

Power Mirror Actuator Replacement

1. Remove the mirror holder Mirror Holder Replacement.

2. Disconnect the 8P connector from the mirror, and remove the power mirror Power Mirror Replacement.

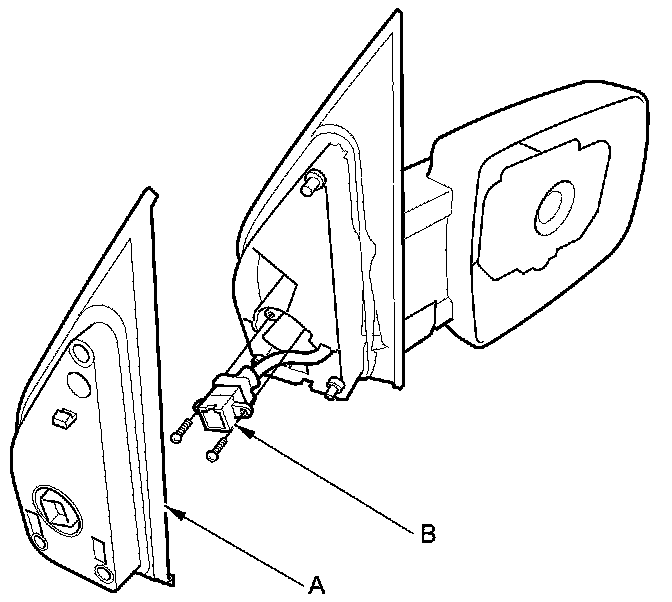

3. Remove the gasket (A), then remove the two screws from the mirror connector (B).





4. Record the terminal locations and wire colors.

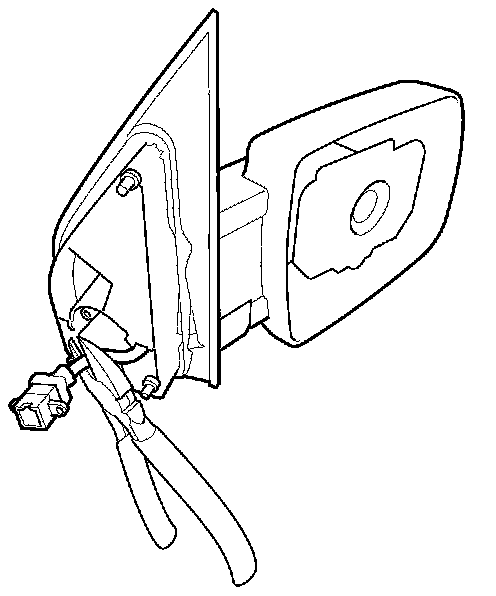

5. Cut the wire harness with the wire cutter.

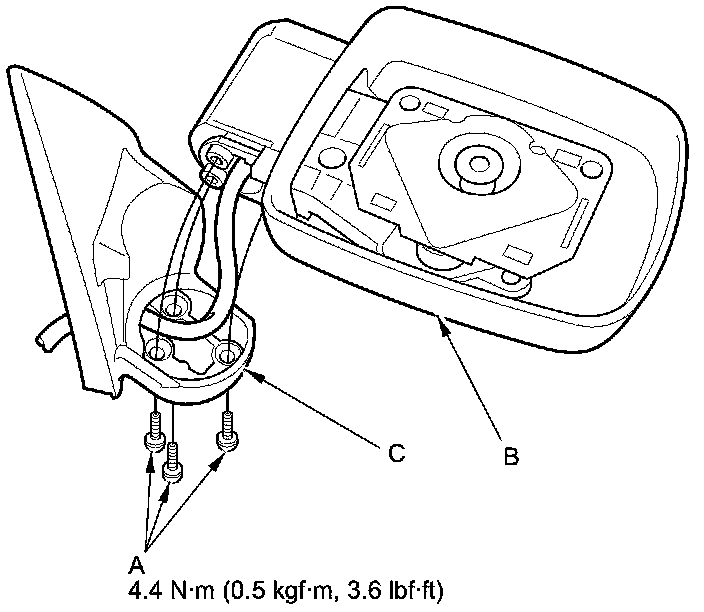

6. Remove the three screws (A), and separate the mirror housing (B) from the bracket (C).

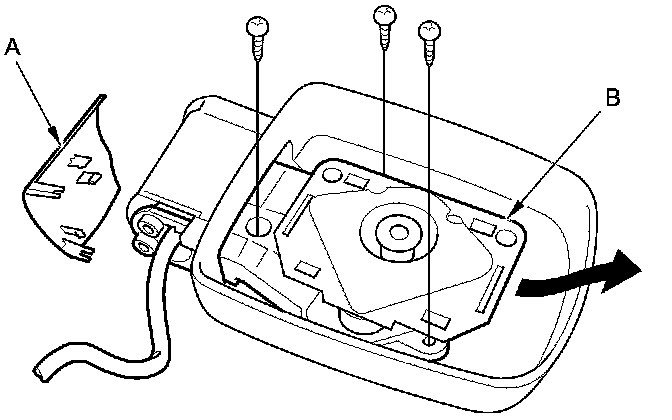

7. Remove the cover (A), then remove the three screws and the actuator (B).

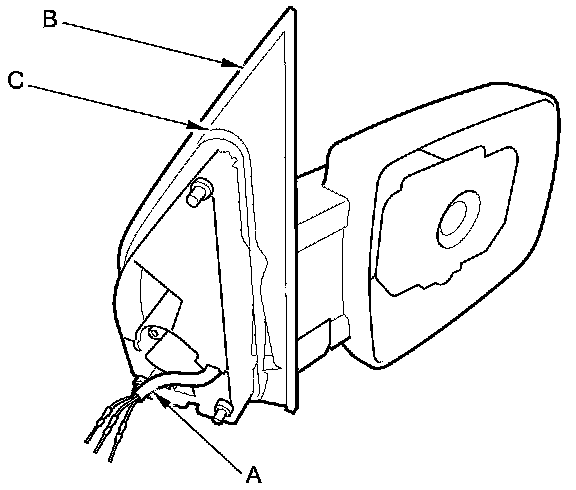

8. Route the wire harness (A) of the new actuator through the hole in the bracket (B) and gasket (C).





9. Install the actuator, bracket, and cover in the reverse order of removal.

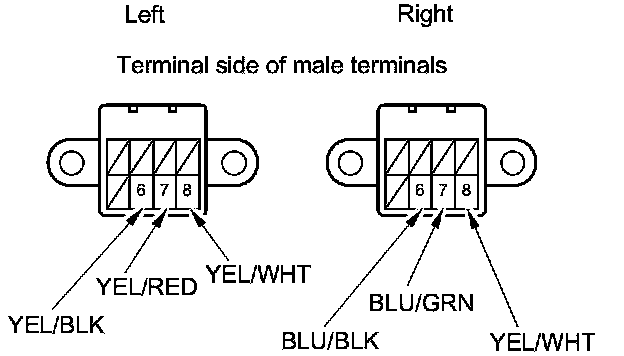

10. Insert the new actuator terminals into the connector in the original arrangement as shown.





11. Reassemble in the reverse order of disassembly.

Be careful not to break the mirror holder when reinstalling it to the actuator Mirror Holder Replacement.

12. Reinstall the mirror assembly to the door.

13. Operate the power mirror to ensure smooth operation.
