Sunroof / Moonroof Windguard: Service and Repair

Skylight Deflector Replacement

NOTE: Take care not to scratch the frame.

1. Remove the frame Service and Repair.

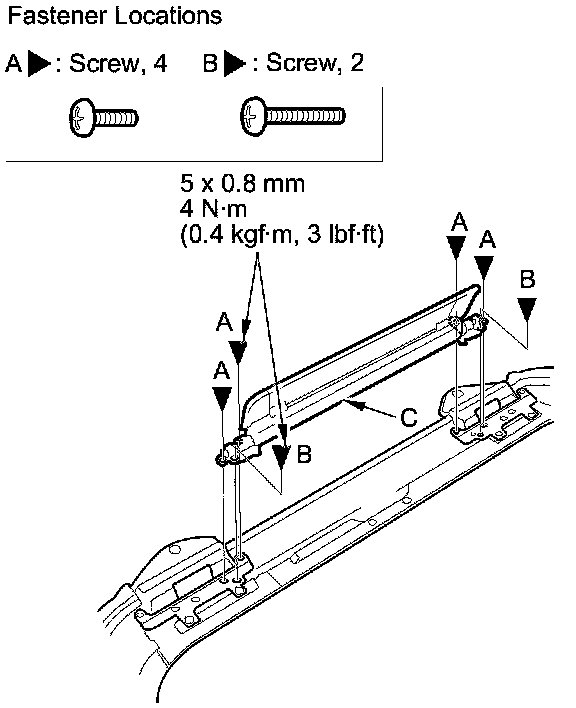

2. Remove the screws (A, B), then remove the deflector (C).





3. Install the deflector in the reverse order of removal.
