Front Seat Armrest Replacement

Front Seat Armrest Replacement

For Some Models

NOTE: Take care not to tear or damage the seat covers.

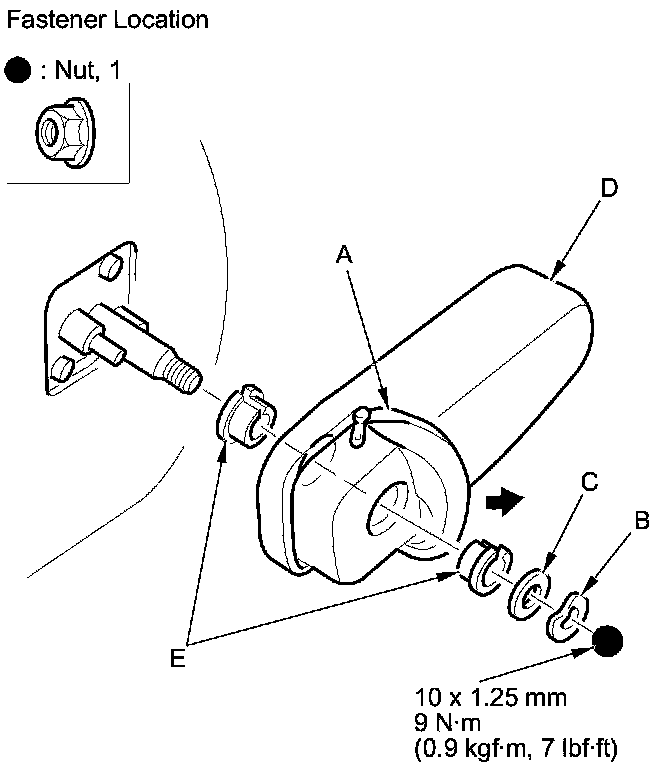

1. Unzip the armrest cover (A), and turn over the cover to access the nut.





2. Remove the nut, the wave washer (B) and the washer (C), then remove the armrest (D). If necessary, remove the bushings (E) from the armrest.

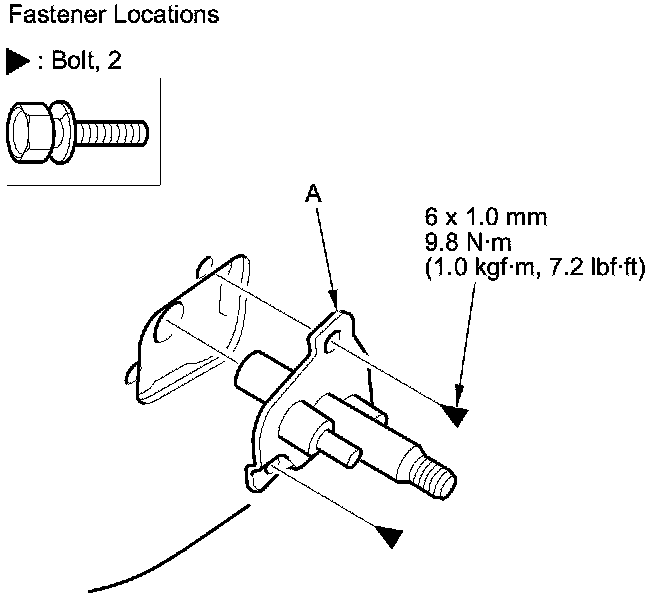

3. If necessary, remove the bolts, then remove the armrest bracket (A).





4. Install the armrest in the reverse order of removal, and make sure the bushings and the washers are installed in the correct sequence.
