Rear Seat Support Removal/Installation

Rear Seat Support Removal/Installation

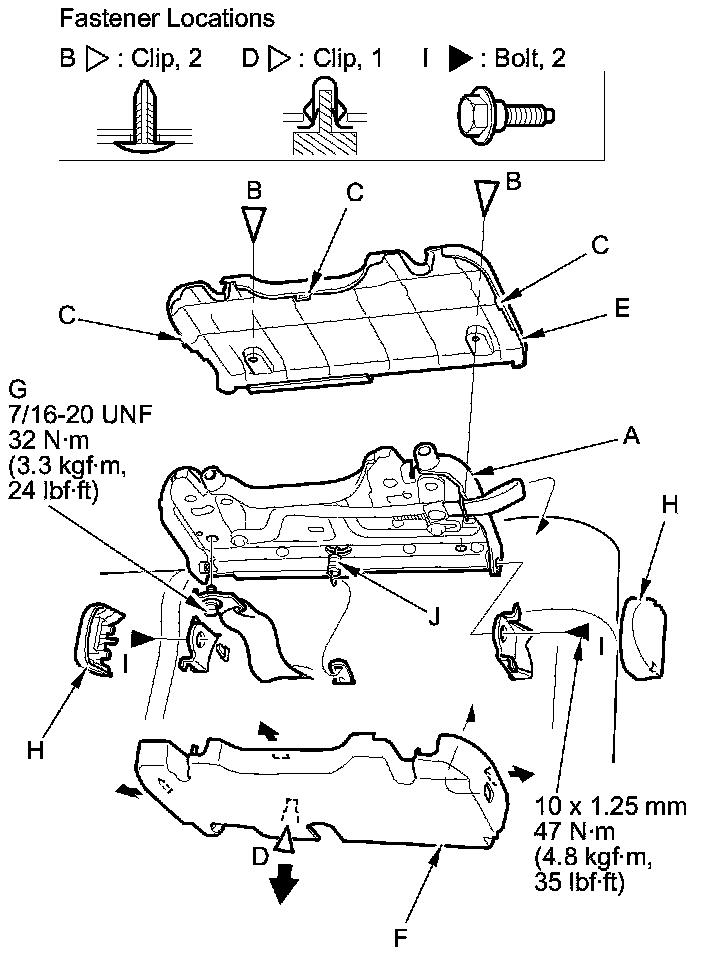

1. Remove the seat support (A).

1. Release the clips (B).

2. Release the hooks (C), and detach the clip (D), then remove the outer support cover (E) and the inner support cover (F).

3. Remove the rear seat belt buckle center anchor bolt (G).

4. Remove the support bracket covers (H) from both sides.

5. Remove the bolts (I).

6. Release the support spring (J).





2. Install the seat support in the reverse order of removal, and note these items:

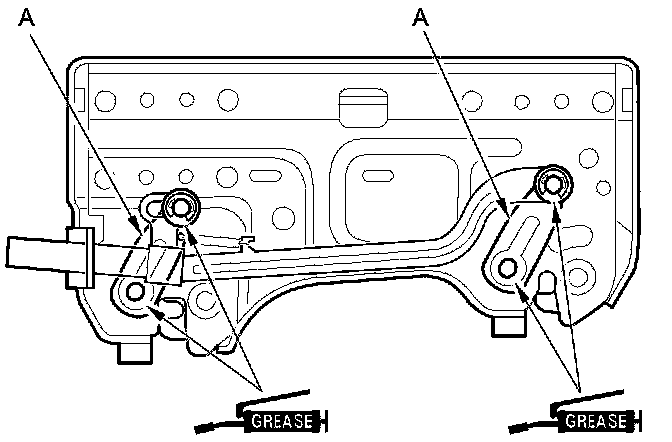

- Apply multipurpose grease to the moving parts (A) as indicated by the arrows.
- Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.
- Make sure there are no twists or kinks in the seat belt buckle before reinstallation.
- When installing the inner support cover, slip the strap through the hole in the cover.
