Parking Brake Cable: Service and Repair

Parking Brake Cable Replacement

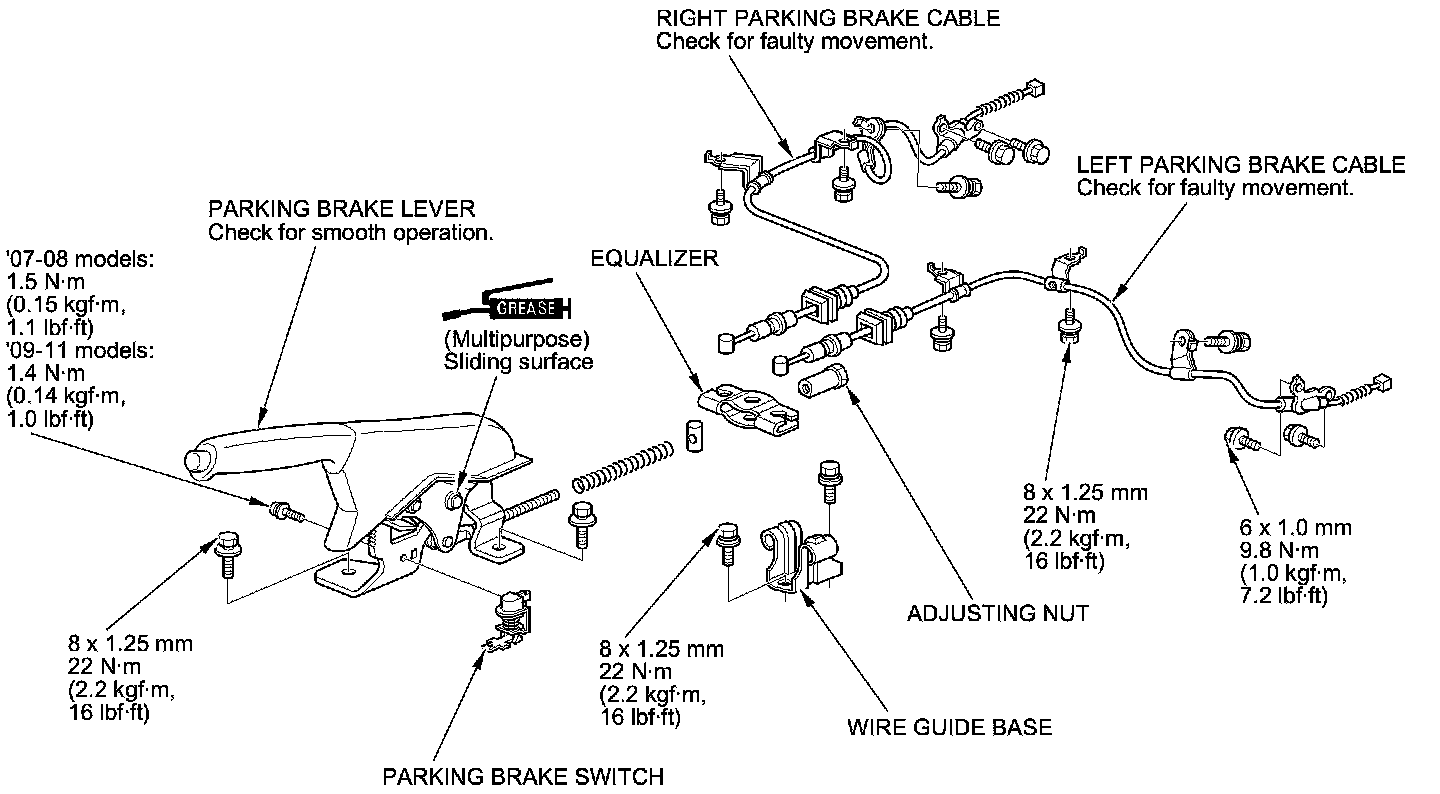

Exploded View

Except SC Model





Exploded View

SC Model





NOTE:

- The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature failure.
- Refer to the Exploded View as needed during this procedure.

1. Raise and support the vehicle Service and Repair.

2. Remove the rear wheels.

3. Release the parking brake lever fully.

4. Except SC model: Remove the center console Center Console Removal/Installation (Except SC Models).
SC model: Remove the lid (A) from the center console.

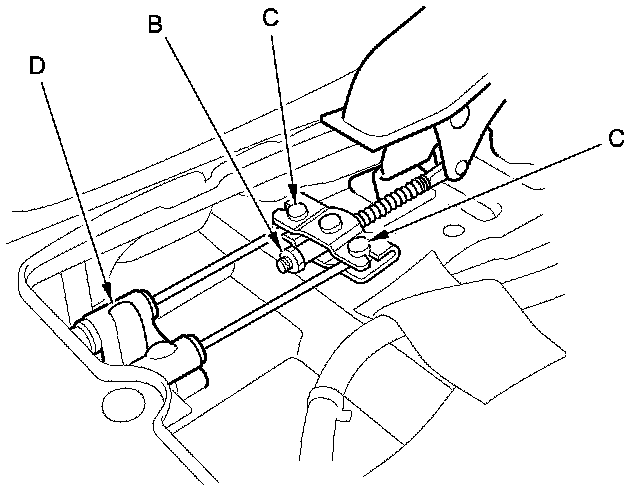

Except SC model

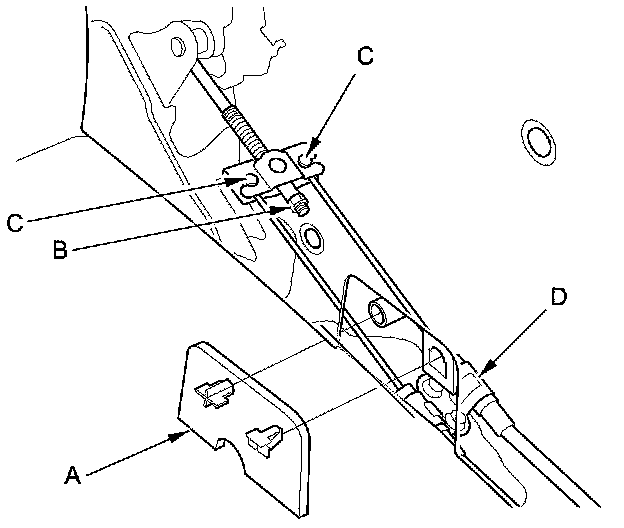

SC model





5. Loosen the adjusting nut (B) in the equalizer, and disconnect the parking brake cable ends (C) from the equalizer.

6. Remove the cable guide base (D).

7. Remove the brake shoe, and disconnect the parking brake cable from the parking brake lever Removal and Replacement.

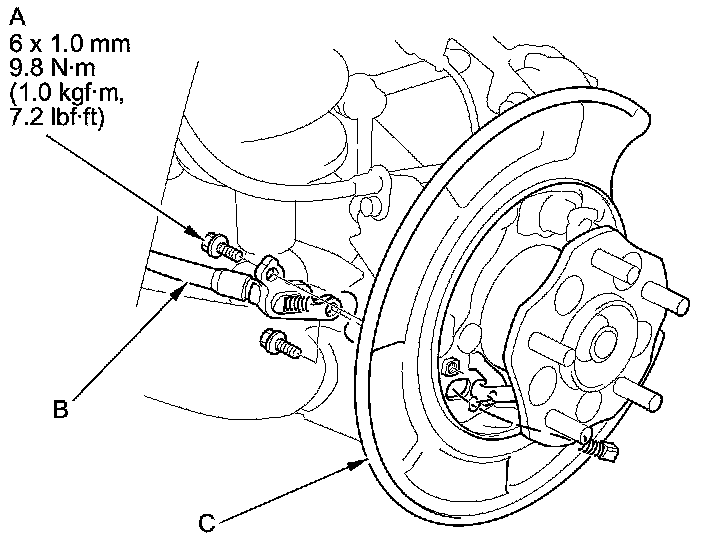

8. Remove the flange bolts (A) and the parking brake cable (B) from the backing plate (C).





9. Remove the parking brake cable mounting hardware, then remove the cable.

10. Reinstall the parking brake cable in the reverse order of removal, and note these items:

- Be careful not to bend or distort the cable.
- Connect the parking brake cable to the parking brake lever, and install the brake shoes and disc/drum Removal and Replacement.
- Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheels.
- Adjust the parking brake Adjustments. Apply the parking brake firmly 10 times then adjust it again.
