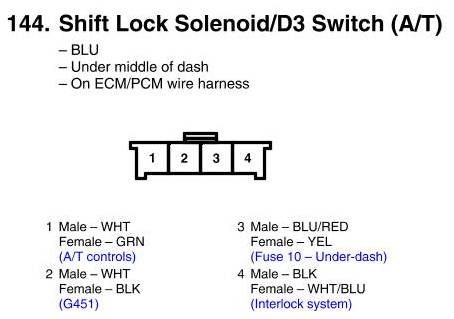

View 144 - Shift Lock Solenoid/D3 Switch Connector View (A/T)
View 144 - Shift Lock Solenoid/D3 Switch Connector View (A/T)
