Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

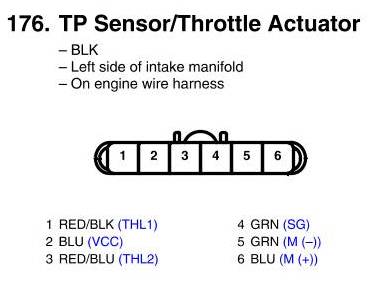

View 176 - TP Sensor/Throttle Actuator Connector View
View 176 - TP Sensor/Throttle Actuator Connector View
