Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

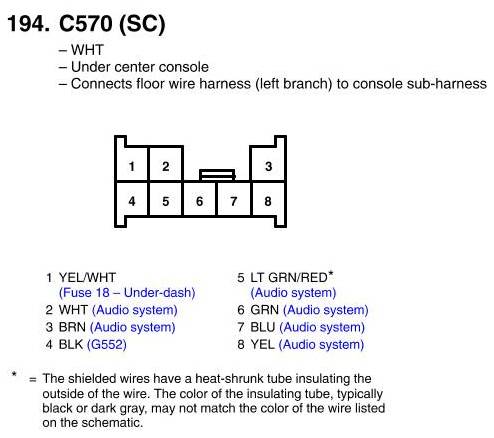

View 194 - C570 Connector View (SC)
View 194 - C570 Connector View (SC)
