Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

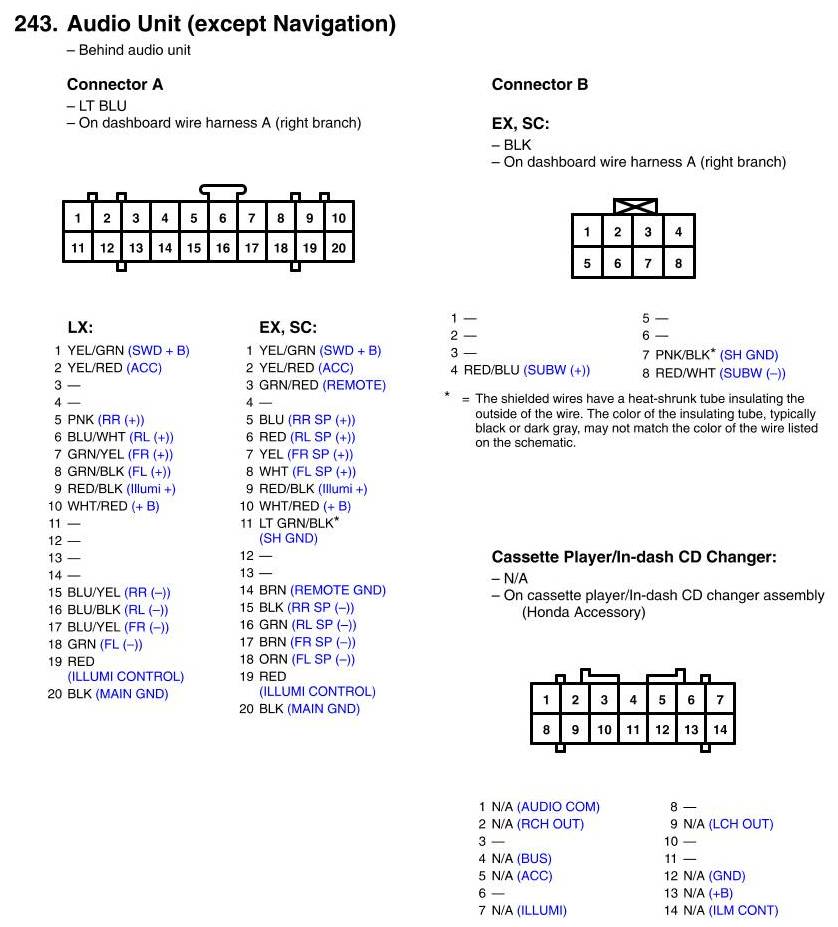

View 243 - Audio Unit Connector View (Except Navigation)
View 243 - Audio Unit Connector View (Except Navigation)
