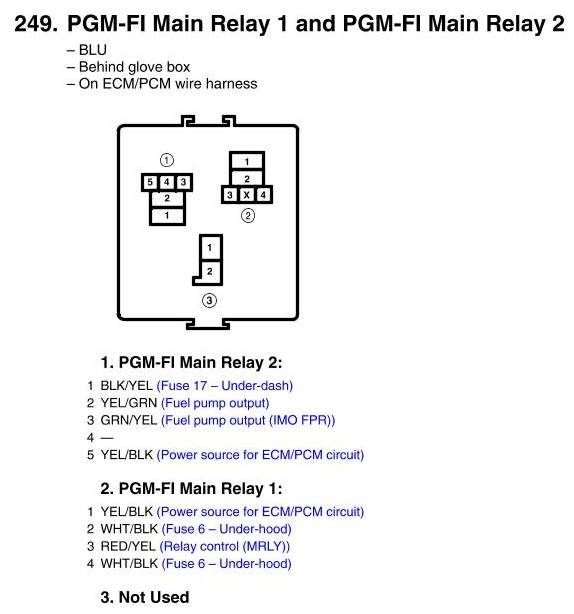

View 249 - PGM-FI Main Relay 1 And PGM-FI Main Relay 2 Connector View
View 249 - PGM-FI Main Relay 1 And PGM-FI Main Relay 2 Connector View
