Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>

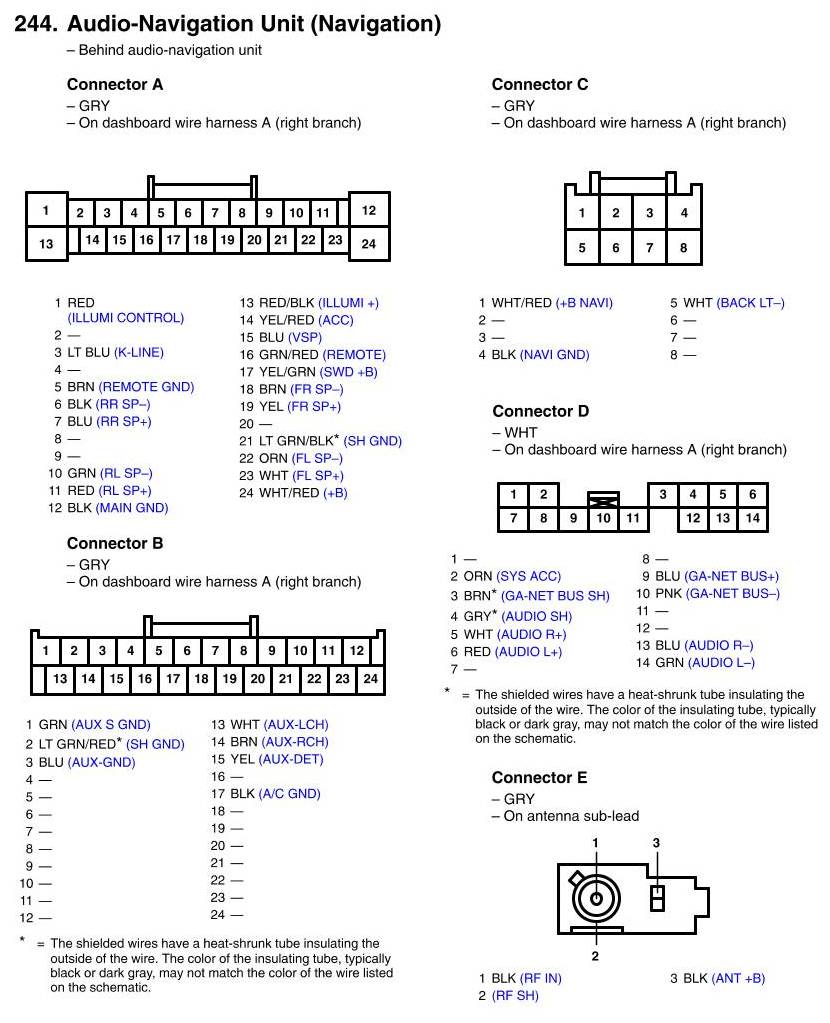

Audio-Navigation Unit Connector View (Navigation)
Audio-Navigation Unit Connector View (Navigation)
