Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Switch
>>

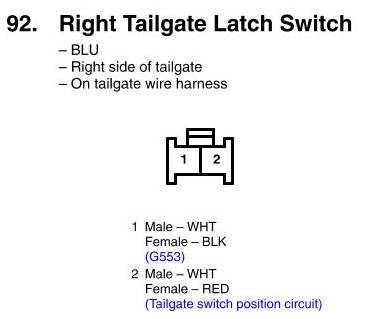

Right Tailgate Latch Switch Connector View
Right Tailgate Latch Switch Connector View
