Home
>>
Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

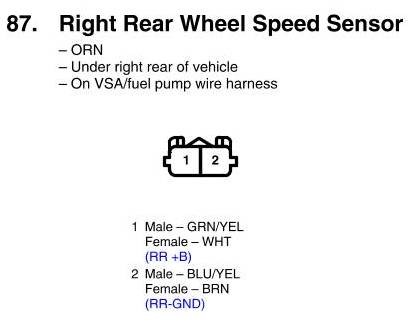

Right Rear Wheel Speed Sensor Connector View
Right Rear Wheel Speed Sensor Connector View
