Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
>>

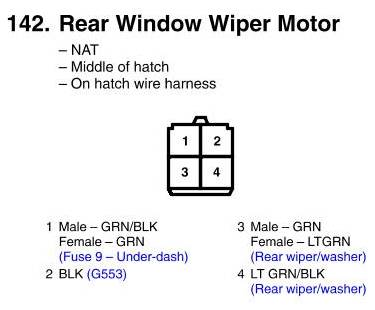

Rear Window Wiper Motor Connector View
Rear Window Wiper Motor Connector View
