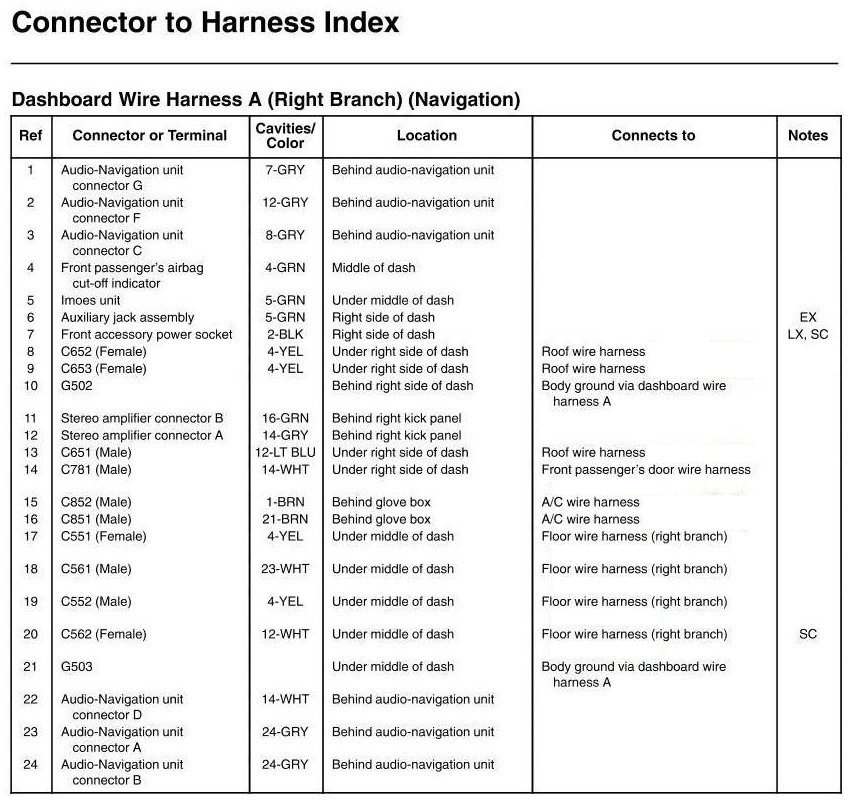

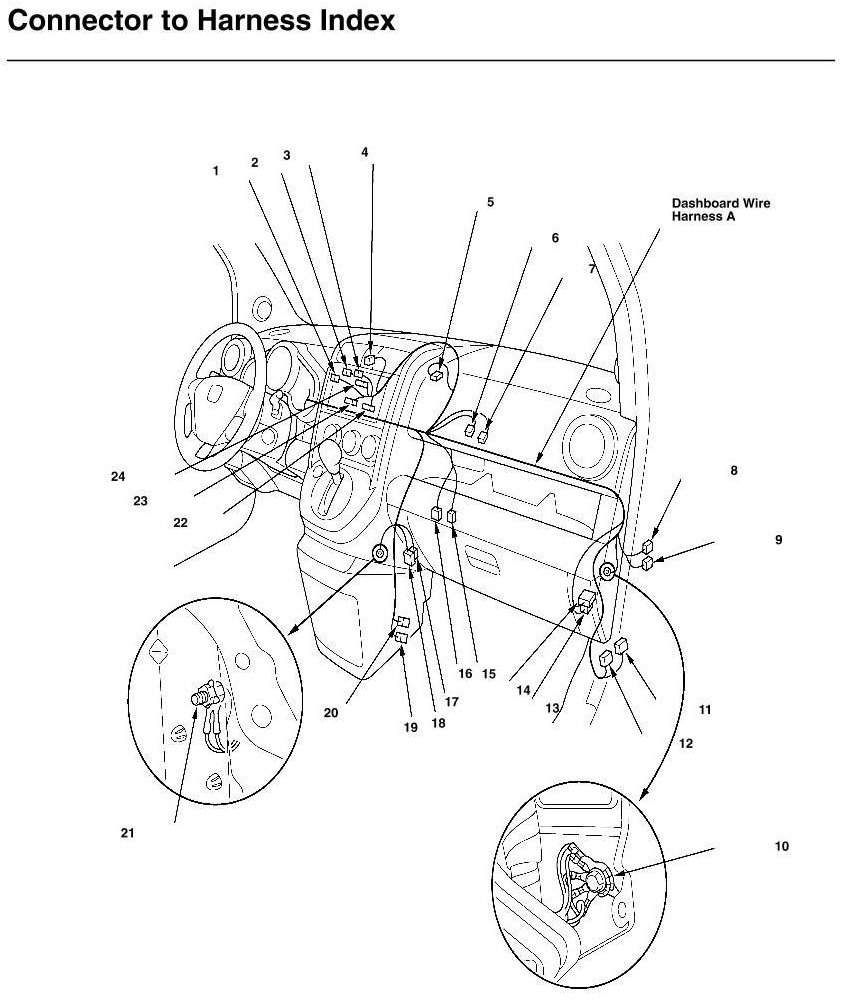

Dashboard Wire Harness A (Right Branch) Connector and Harness Locations (With Navigation)
Dashboard Wire Harness A (Right Branch) Connector and Harness Locations (With Navigation)
