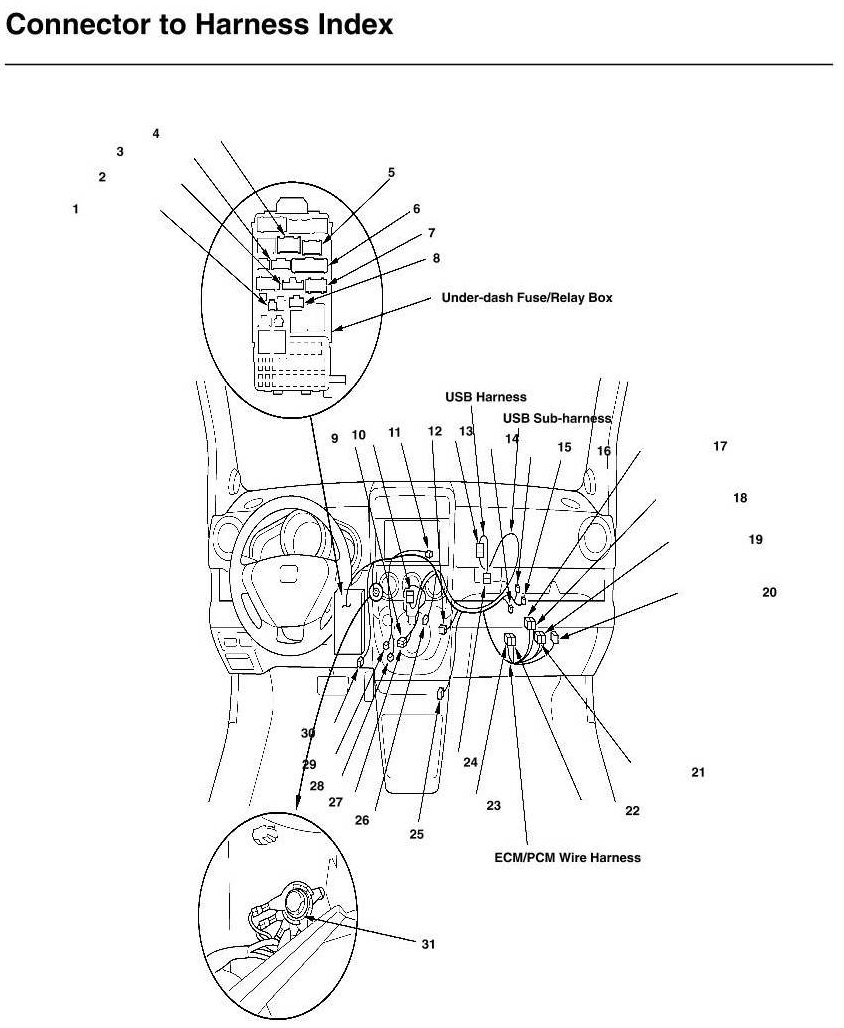

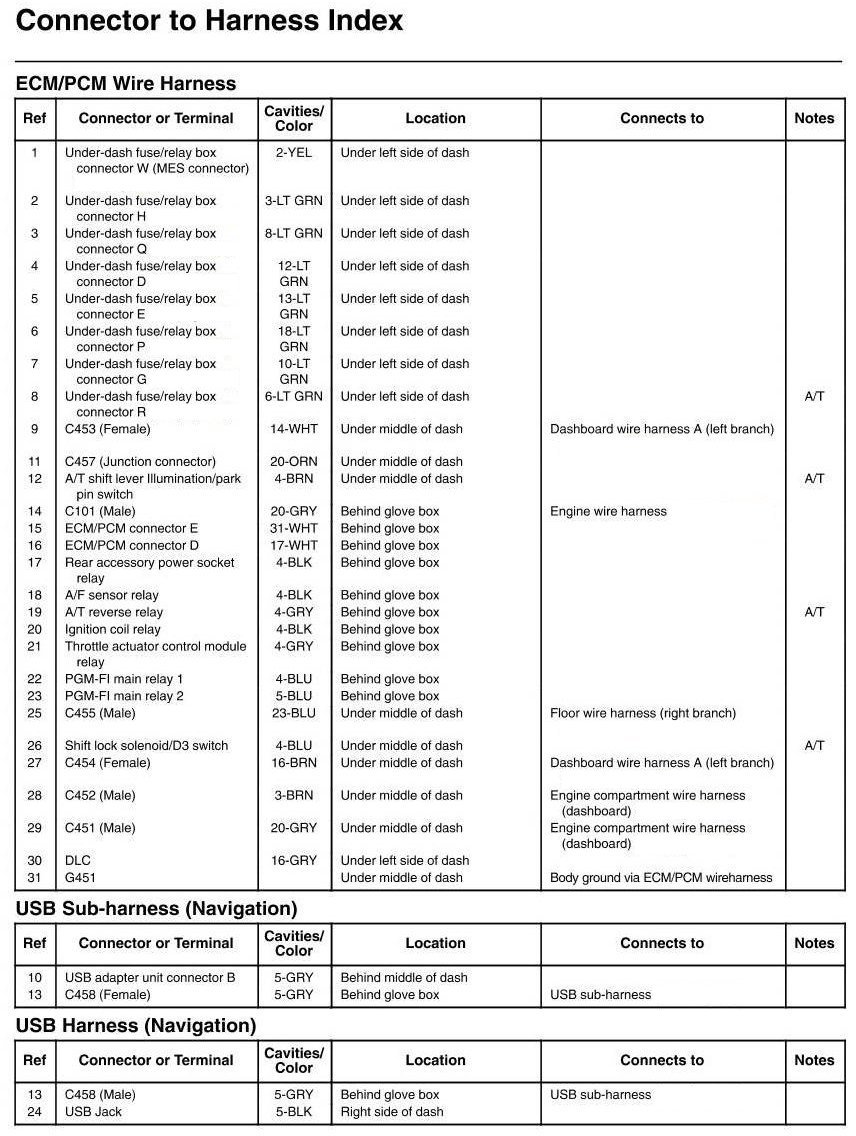

ECM/PCM Wire Harness, USB Harness, and USB Subharness Connector and Harness Locations
ECM/PCM Wire Harness, USB Harness, and USB Subharness Connector and Harness Locations
