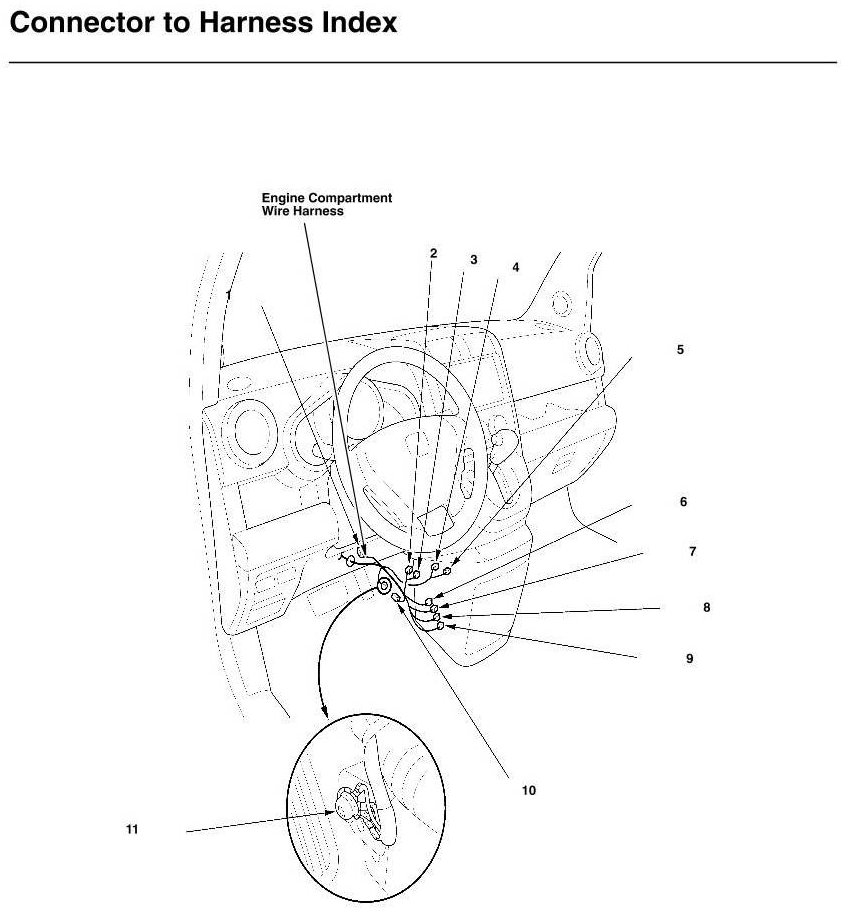

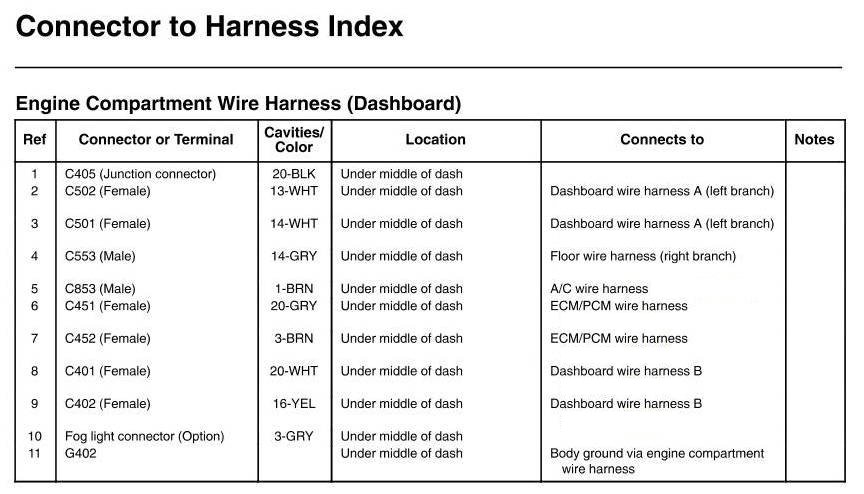

Engine Compartment Wire Harness (Dashboard) Connector and Harness Locations
Engine Compartment Wire Harness (Dashboard) Connector and Harness Locations
