Seat Position Sensor Subharness
Seat Position Sensor Subharness

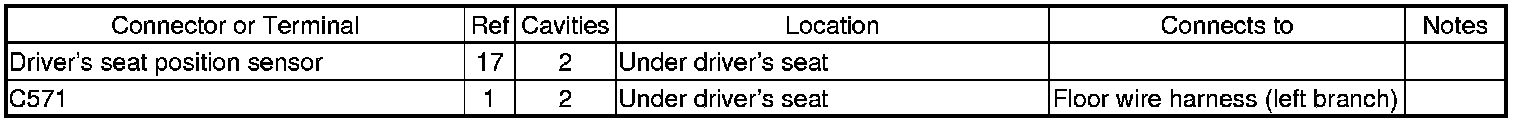

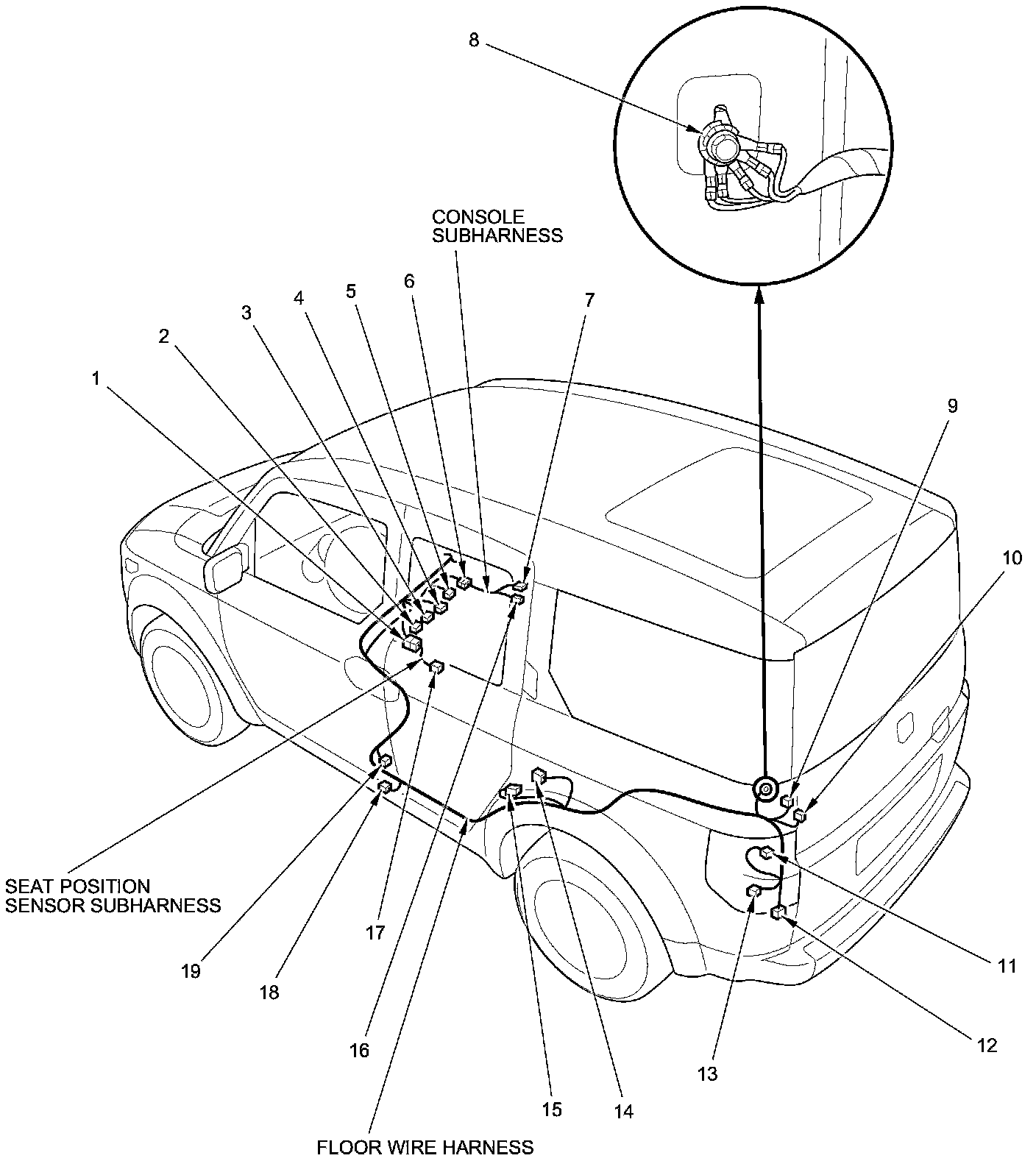

Connector and Harness Locations
Seat Position Sensor Subharness
