2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Wire Harness
>>
Engine Wire Harness
Engine Wire Harness

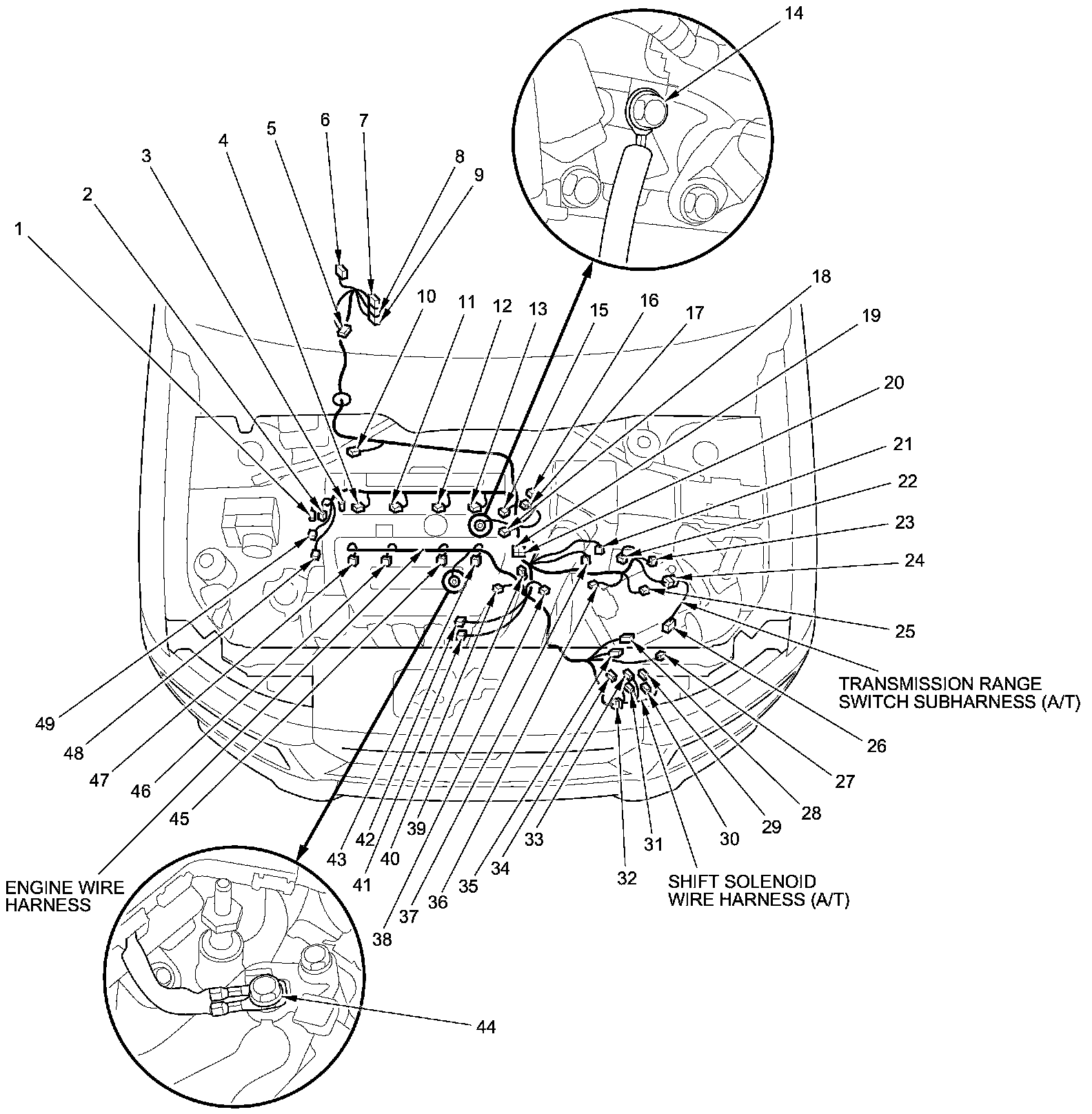

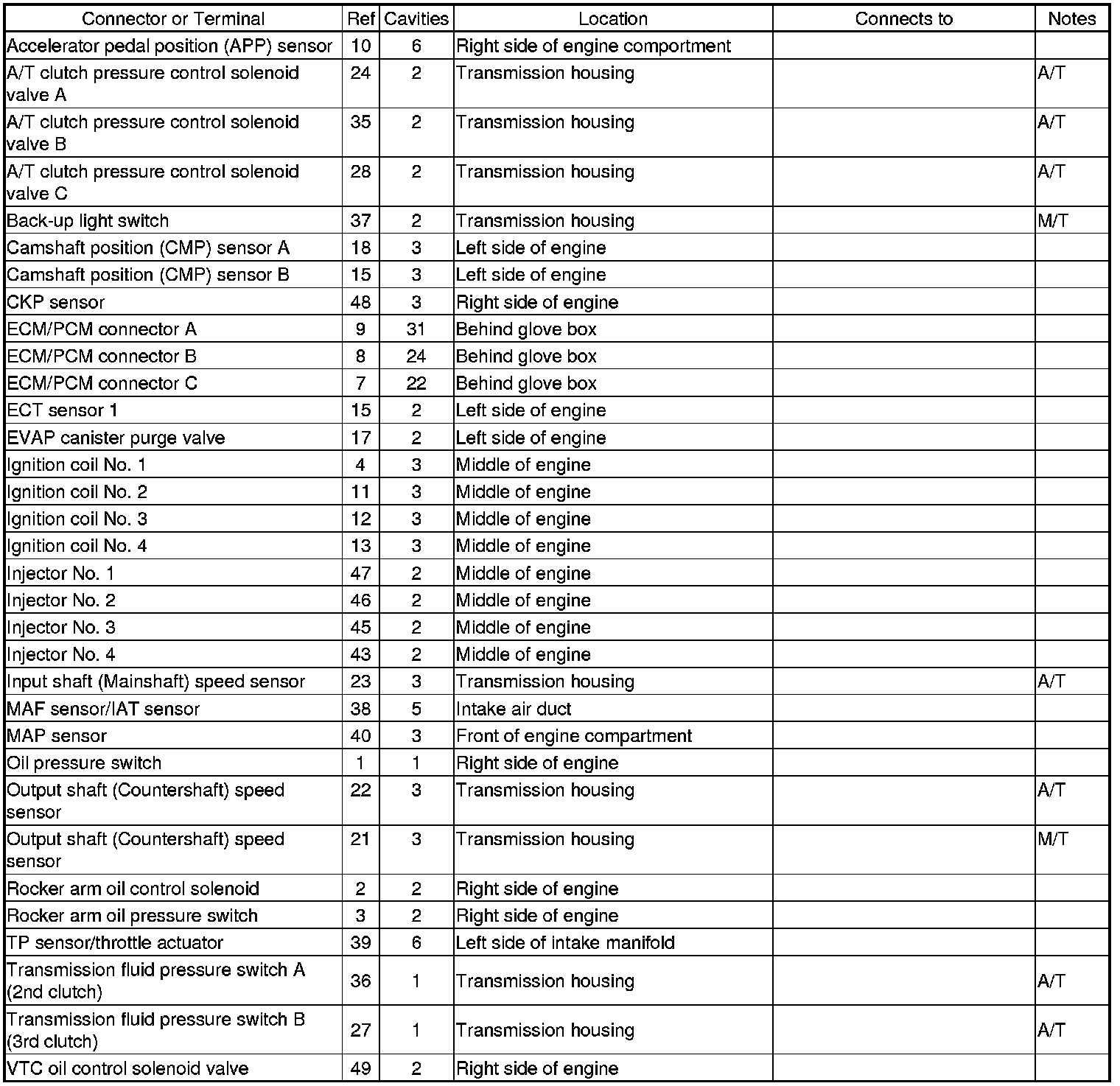

Connector and Harness Locations
Engine Wire Harness
