Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Wire Harness
>>
VSA/Fuel Pump Wire Harness
VSA/Fuel Pump Wire Harness

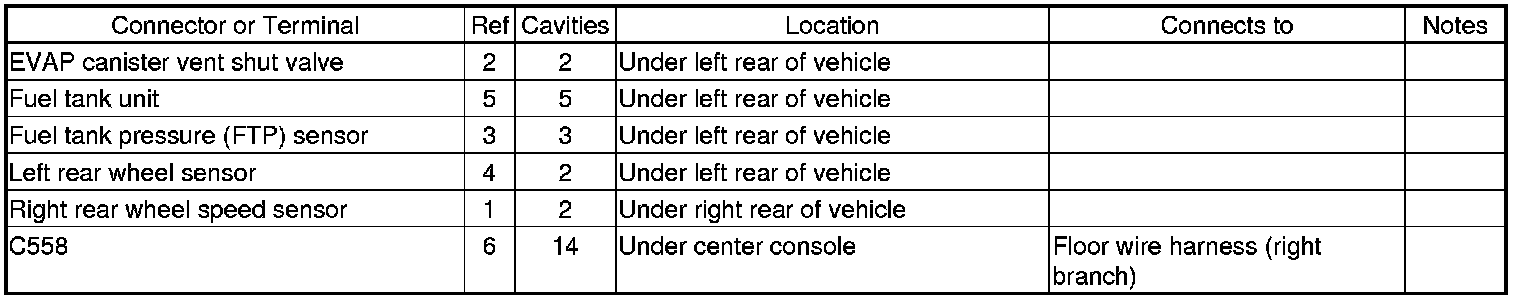

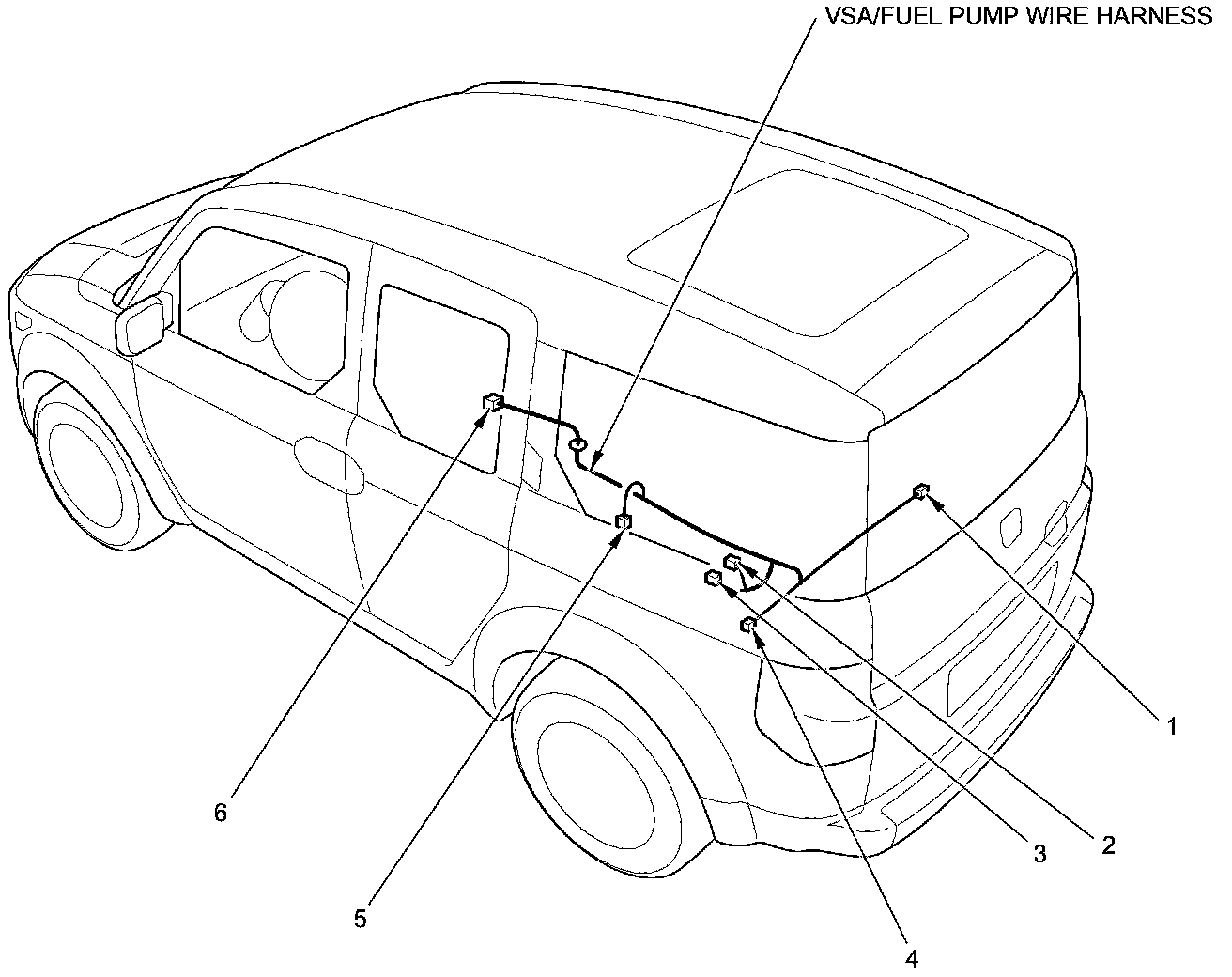

Connector and Harness Locations
VSA/Fuel Pump Wire Harness
