Rocker Arm Assembly Installation

Rocker Arm Assembly Installation

1. Reassemble the rocker arm assembly Rocker Arm And Shaft Disassembly/Reassembly.

2. Clean and dry the No. 5 rocker shaft holder mating surface.

3. Apply liquid gasket P/N 08717-0004, 08718-0003, or 08718-0009 to the cylinder head mating surface of the No. 5 rocker shaft holder, and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

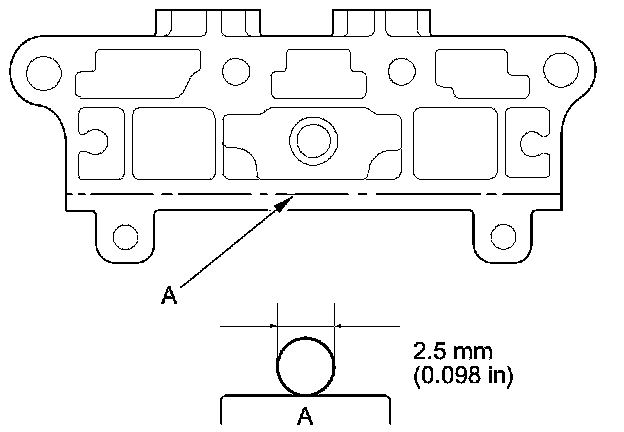

- Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

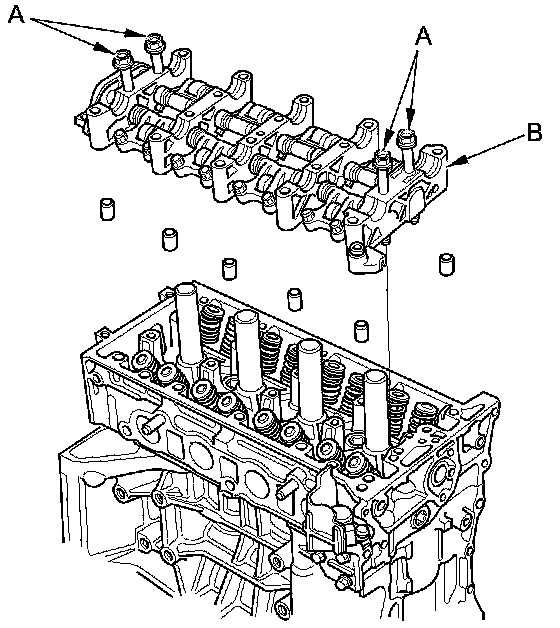

4. Insert the bolts (A) into the rocker shaft holder, then install the rocker arm assembly (B) on the cylinder head.





5. Remove the bolts from the rocker shaft holder.

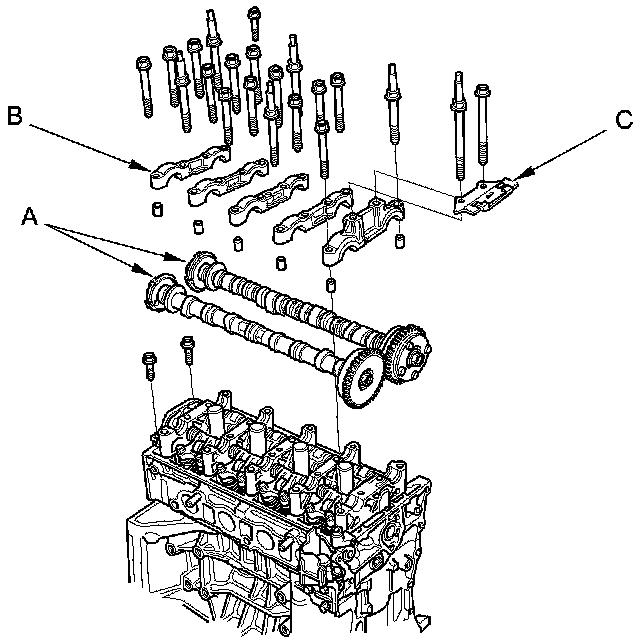

6. Make sure the punch marks on the VTC actuator and exhaust camshaft sprocket are facing up, then set the camshafts (A) in the rocker shaft holder. Apply new engine oil to the camshaft journals and lobes.





7. Set the camshaft holders (B) and cam chain guide B (C) in place.

8. Tighten the bolts in the specified sequence.

NOTE: If the engine does not have bolt (21), skip it and continue the tighten sequence.









9. Install the cam chain Cam Chain Installation, then adjust the valve clearance Adjustments.
