Drive Belt Auto-Tensioner Pulley Replacement




Drive Belt Auto-Tensioner Pulley Replacement

1. Remove the drive belt Service and Repair.

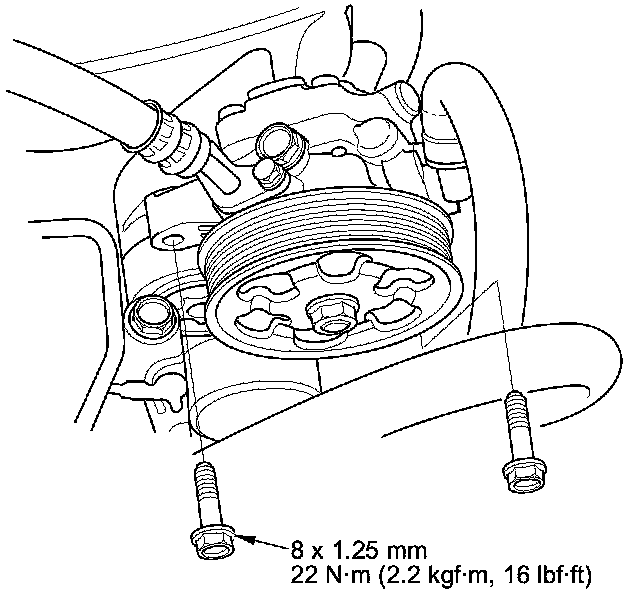

2. Remove the power steering pump without disconnecting the power steering hoses.

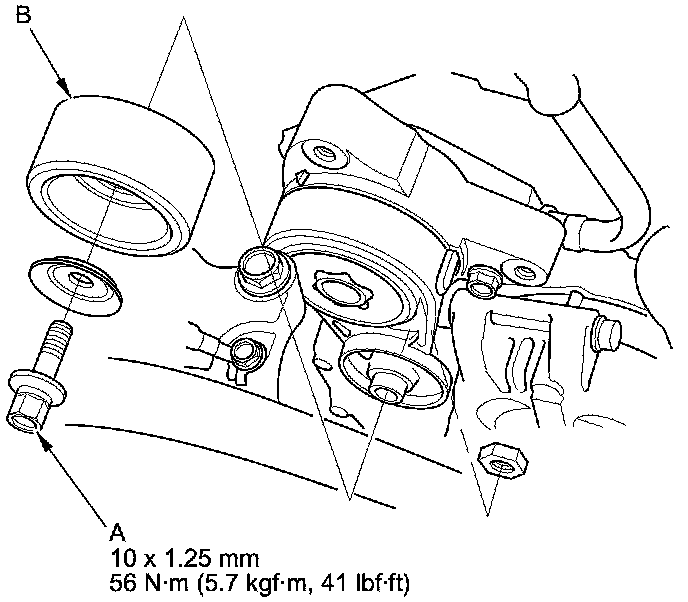

3. Remove the pulley bolt (A), and remove the tensioner pulley (B).






4. Install the tensioner pulley in the reverse order of removal.
