Mode Control Motor Replacement

Mode Control Motor Replacement

1. Remove the ECM/PCM ECM/PCM Replacement (A/T).

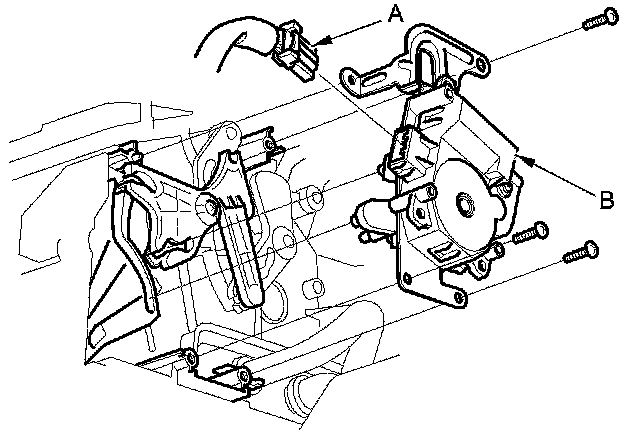

2. Disconnect the 7P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.





3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
