Recirculation Control Motor Replacement

Recirculation Control Motor Replacement

1. Remove the ECM/PCM ECM/PCM Replacement (A/T).

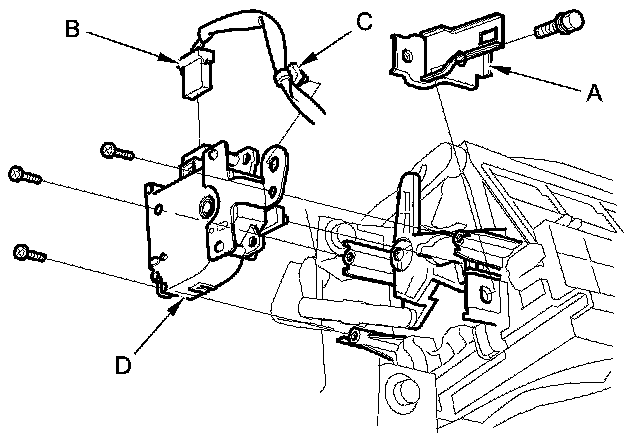

2. Remove the bolt and the bracket (A). Disconnect the 7P connector (B) and detach the harness clip (C) from the recirculation control motor (D). Remove the self-tapping screws and the recirculation control motor from the blower unit.





3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
