Instrument Cluster / Carrier: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module" Programming and Relearning.

1. Remove the driver's dashboard panel Driver's Dashboard Panel Removal/Installation.

2. Place a clean shop towel under the gauge control module to prevent scratching the steering column or dashboard.

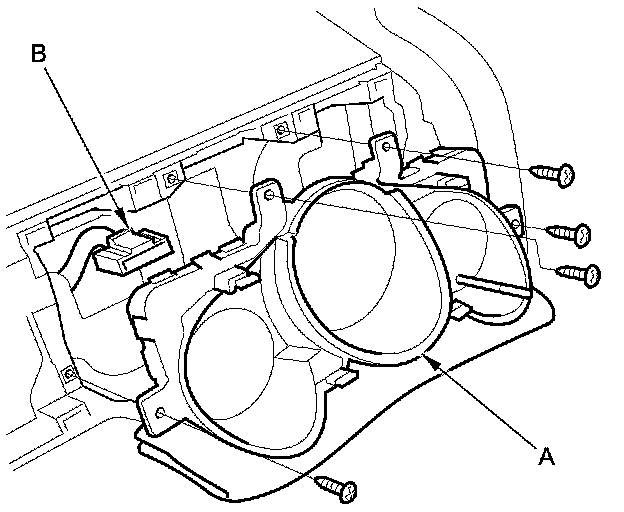

3. Remove the four mounting screws from the gauge control module (A).





4. Disconnect the 36P connector (B), and remove the gauge control module.

5. Install the gauge control module in the reverse order of removal.
