Front Individual Map Light Test/Replacement

Front Individual Map Light Test/Replacement

'09-11 models with overhead console

1. Turn the light switch OFF.

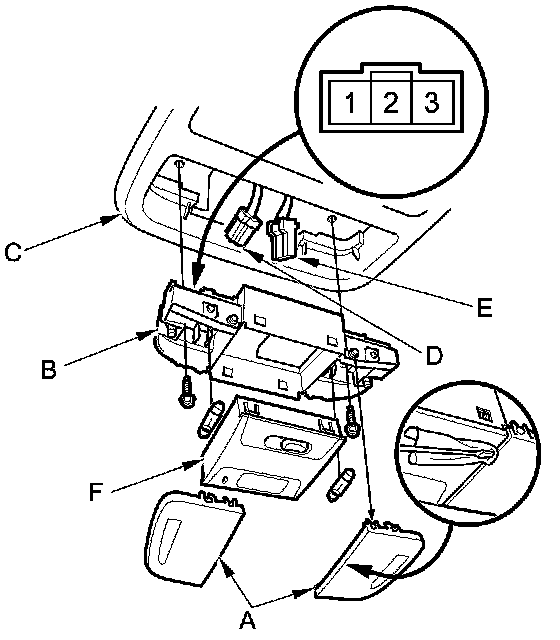

2. Carefully pry the lenses (A) off with a small screwdriver.









3. Remove the screws, then remove the map light (B) from the roof console (C).

4. Disconnect the 3P connector (D) from the map light and the 10P connector (E) from the interior light switch (F).

5. Remove the interior light switch from the map light housing.

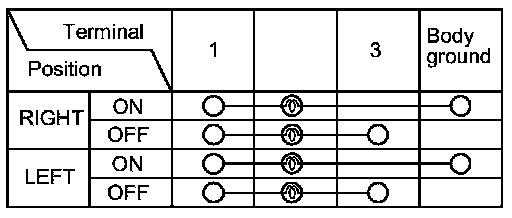

6. Check for continuity between the terminals in each switch position according to the table.





7. If the continuity is not as specified, check the bulb(s). If the bulb(s) are OK, replace the light.

8. Install the switch and light in the reverse order of removal.
