Hazard Warning Switch Test/Replacement

Hazard Warning Switch Test/Replacement

1. Remove the center panel Dashboard Center Panel Removal/Installation.

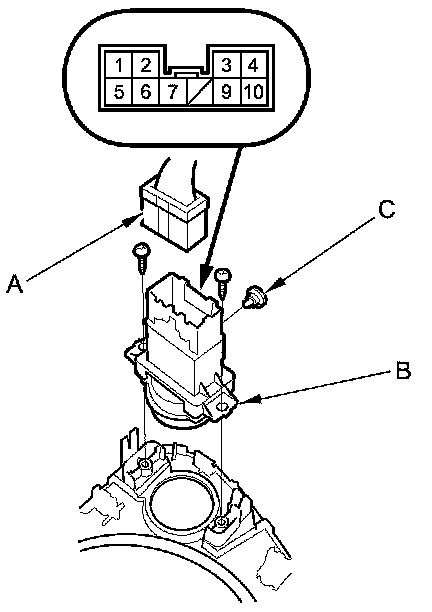

2. Disconnect the 10P connector (A) from the hazard warning switch (B).





3. Remove the two screws and the hazard warning switch.

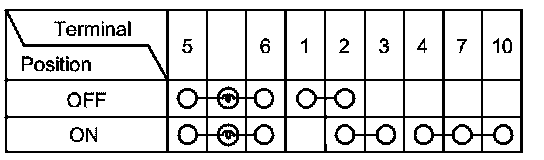

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity is not as specified, replace the illumination bulb (C) or the switch.

6. Install the switch in the reverse order of removal.
