Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>

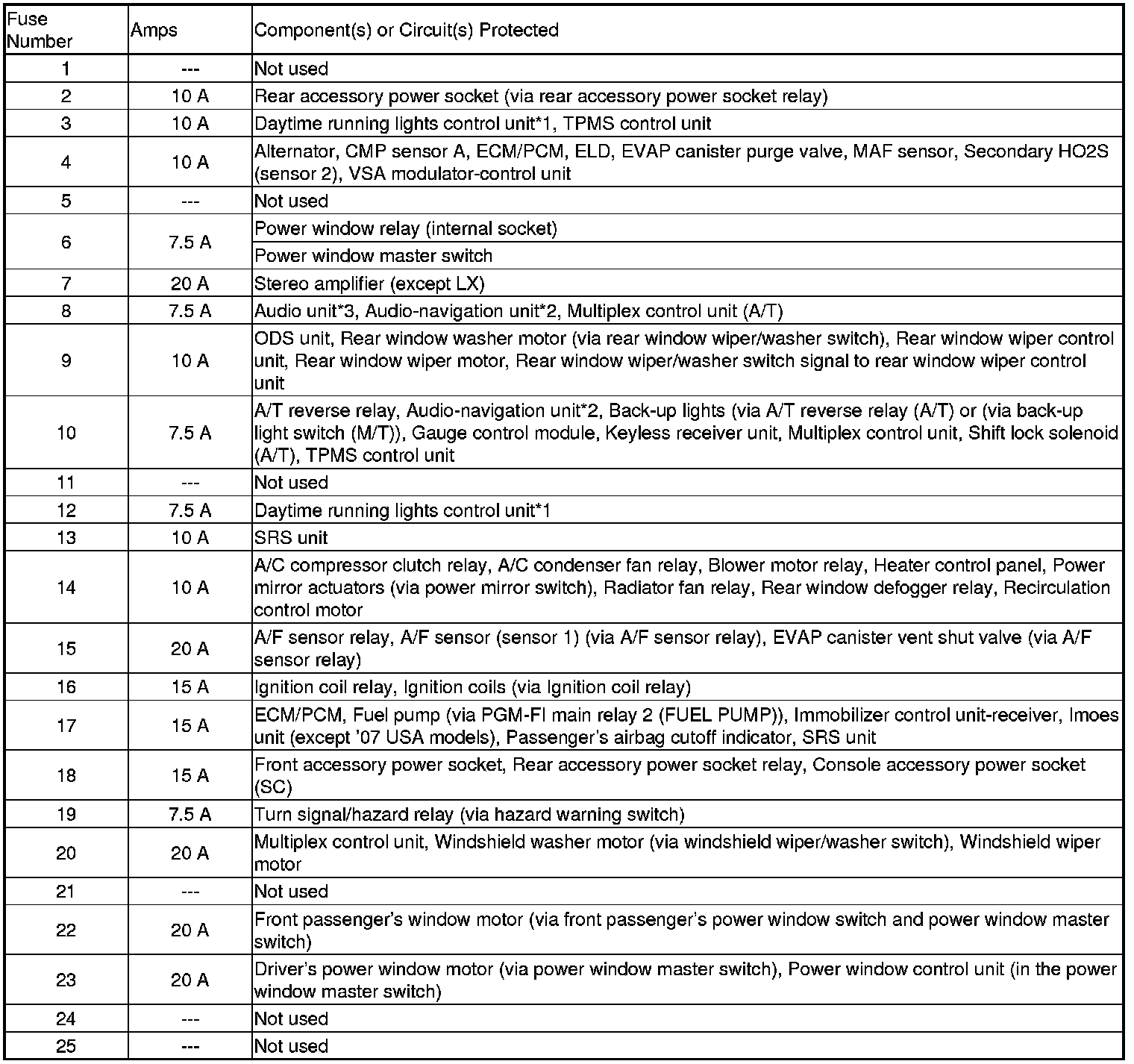

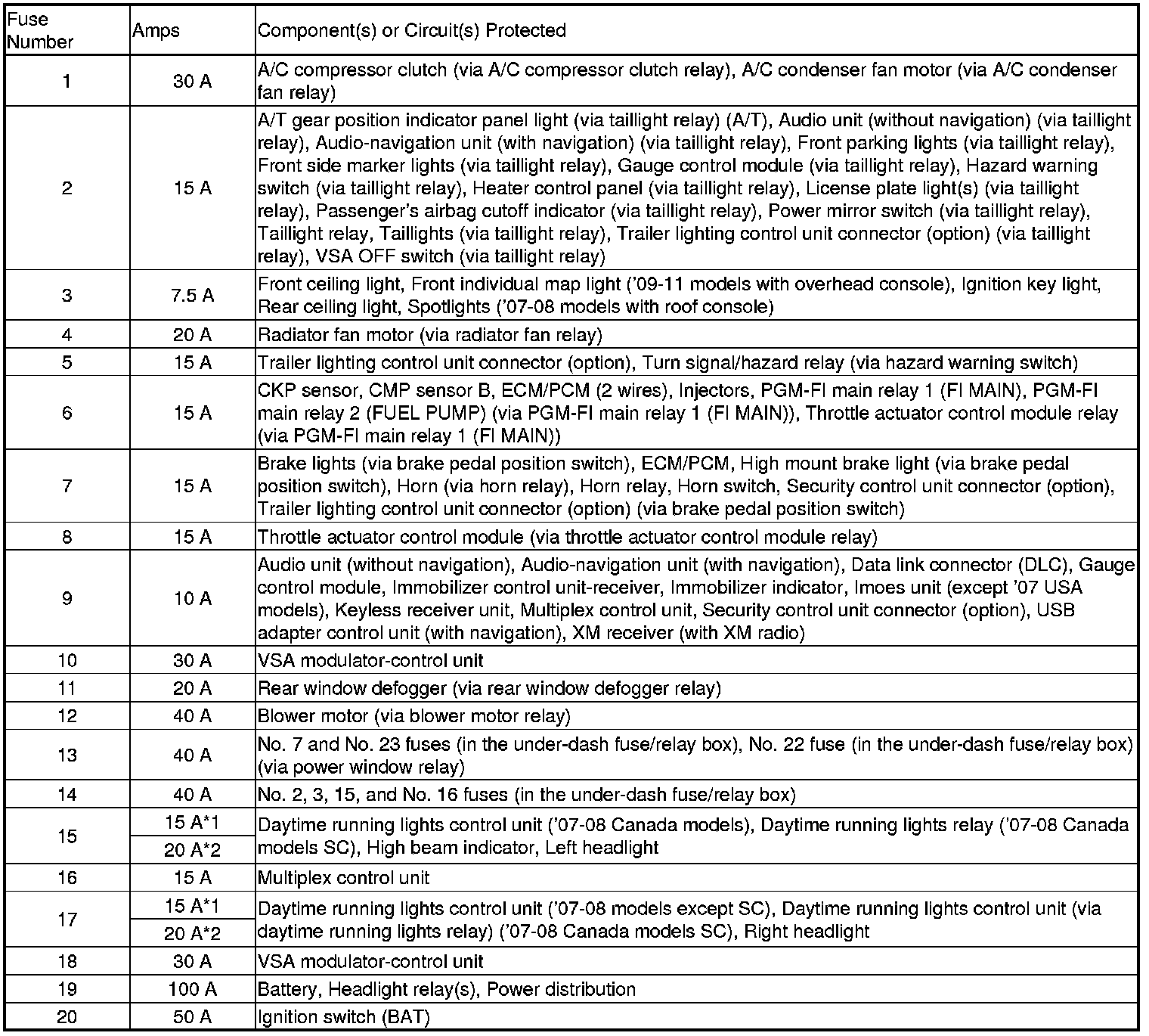

Fuse To Components Index
Fuse To Components Index
Fuse to Components Index

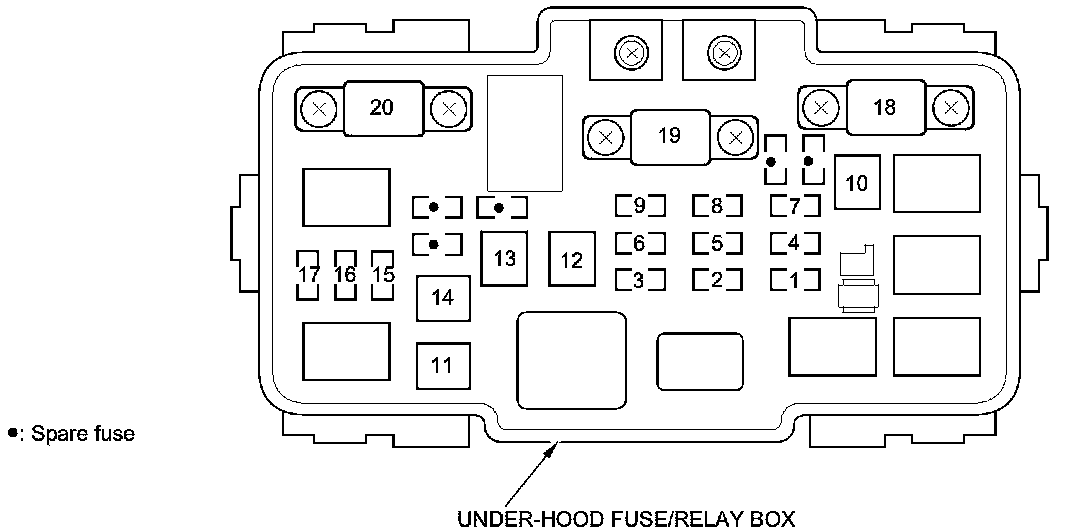

Under-Hood Fuse/Relay Box

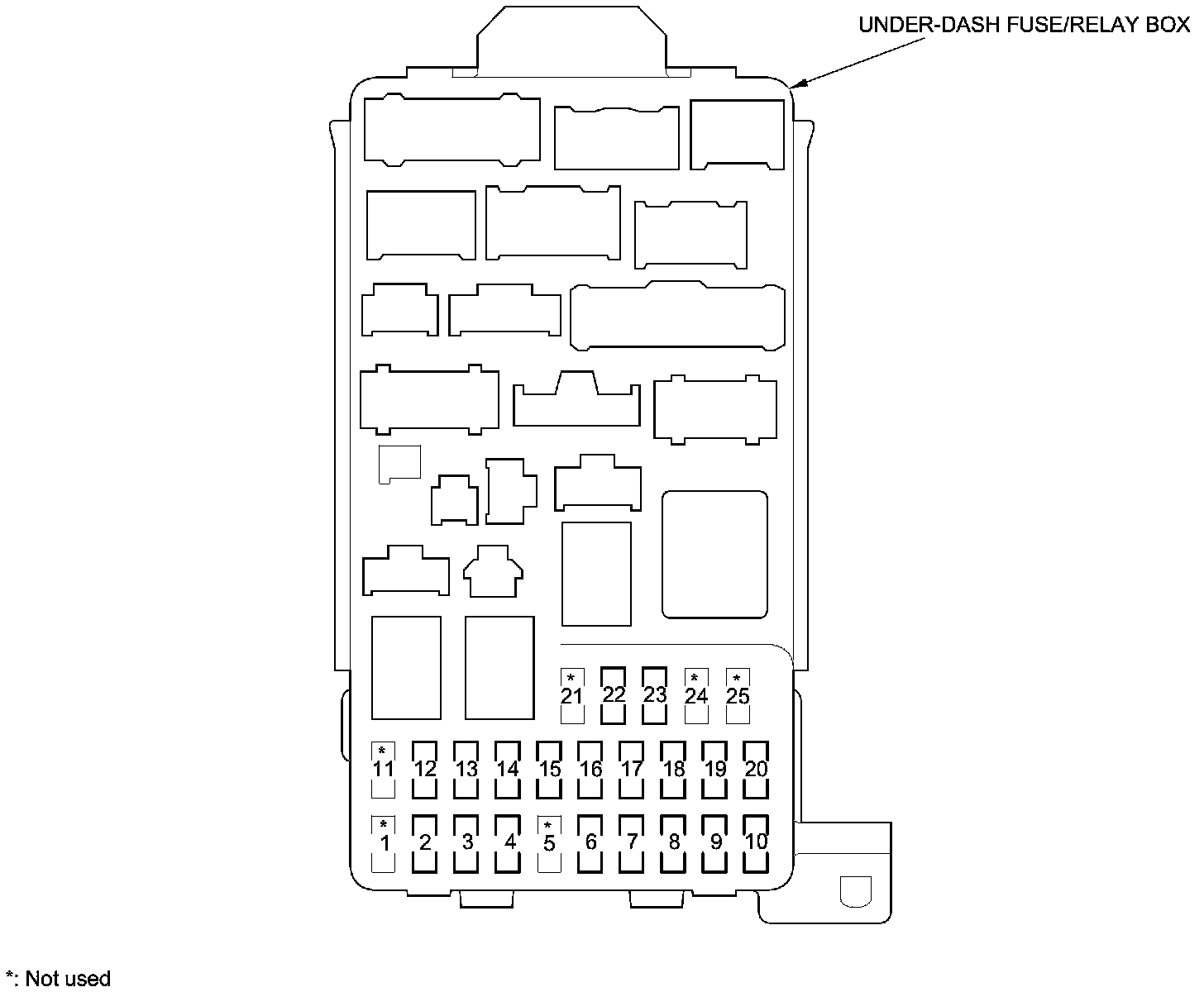

Under-Dash Fuse/Relay Box
