Electric Load Sensor: Service and Repair

ELD Replacement

1. Do the battery terminal disconnection procedure Procedures.

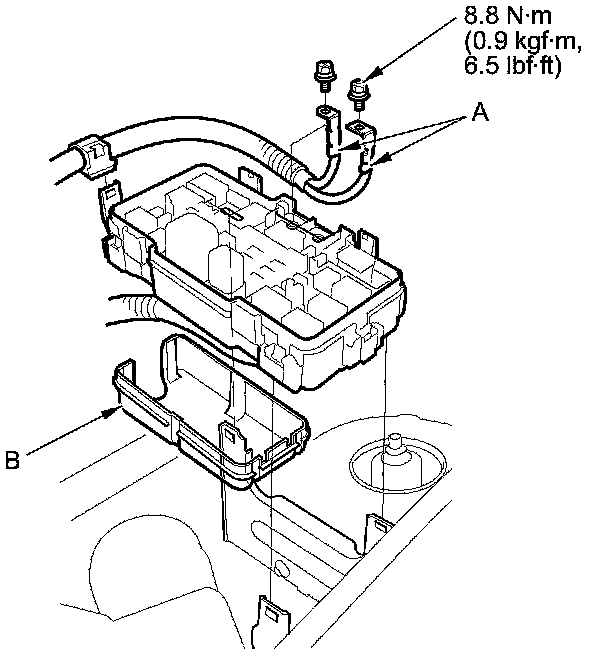

2. Remove the two positive (+) terminals (A).






3. Remove the under-hood fuse/relay box from the bracket.

4. Remove the under-hood fuse/relay box lower cover (B) from the fuse/relay box.

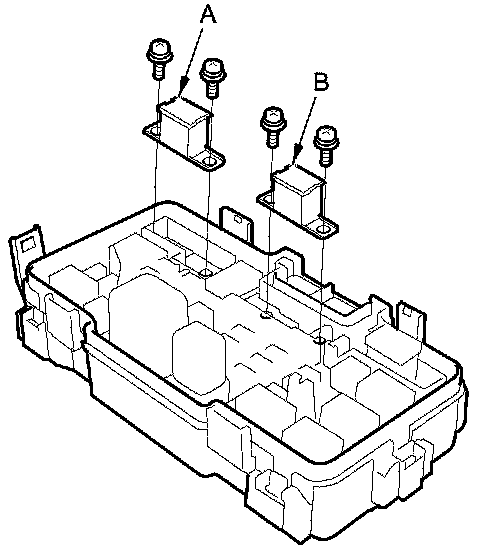

5. Remove the No. 20 IG1 (50 A) fuse (A) and the No. 19 BATTERY (100 A) fuse (B).

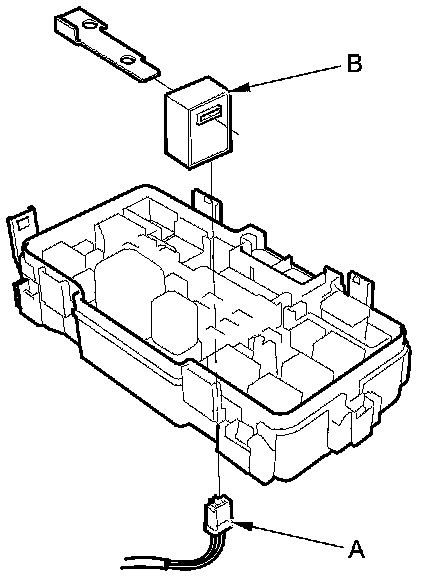

6. Disconnect the ELD 3P connector (A), then remove the ELD (B).





7. Install the parts in the reverse order of removal.

8. Do the battery terminal reconnection procedure Procedures.
