Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

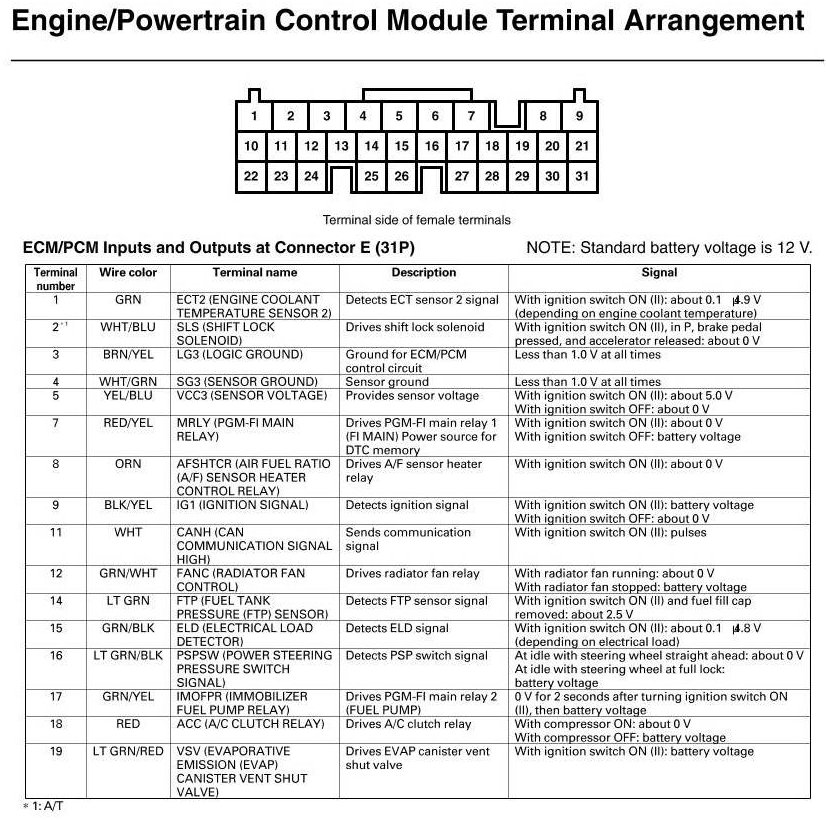

ECM/PCM Inputs And Outputs At Connector E

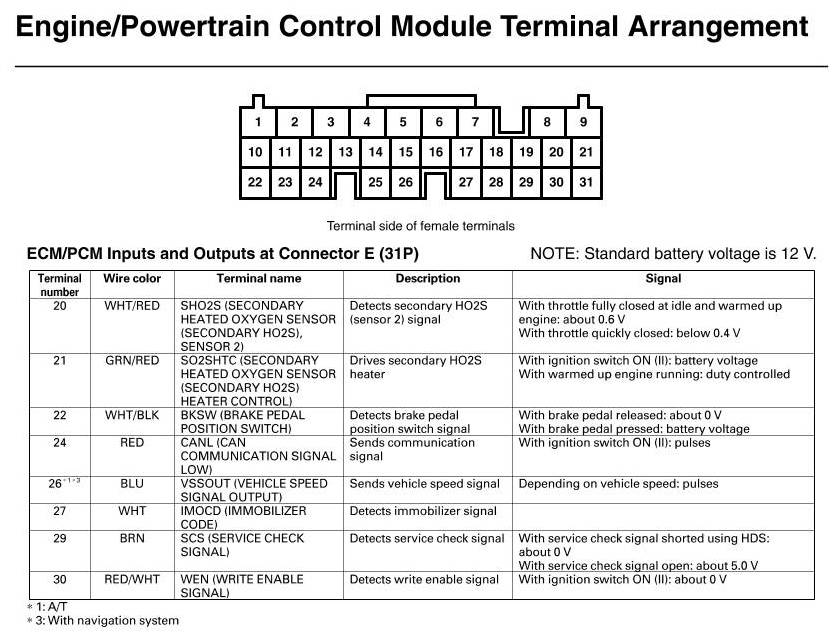

ECM/PCM Inputs And Outputs At Connector E
