Emission Control Systems: Application and ID

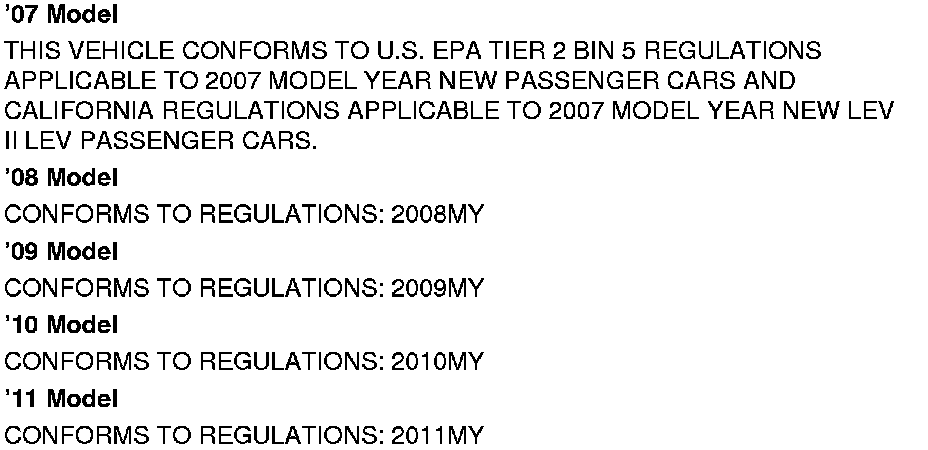

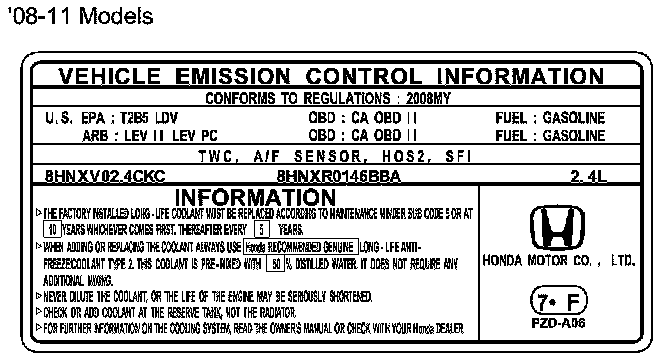

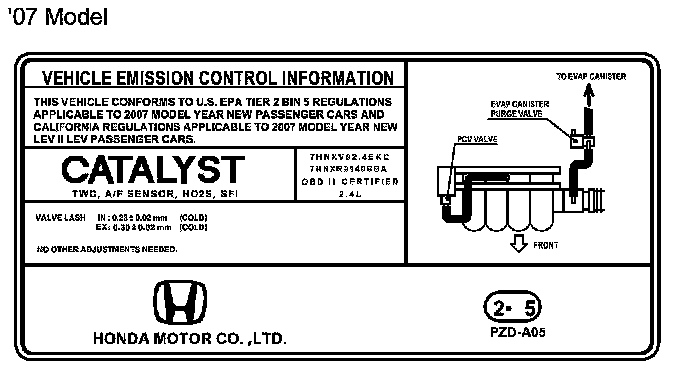

Under-Hood Emission Control Label

Emission Group Identification

Example:














Test Group and Evaporative Family

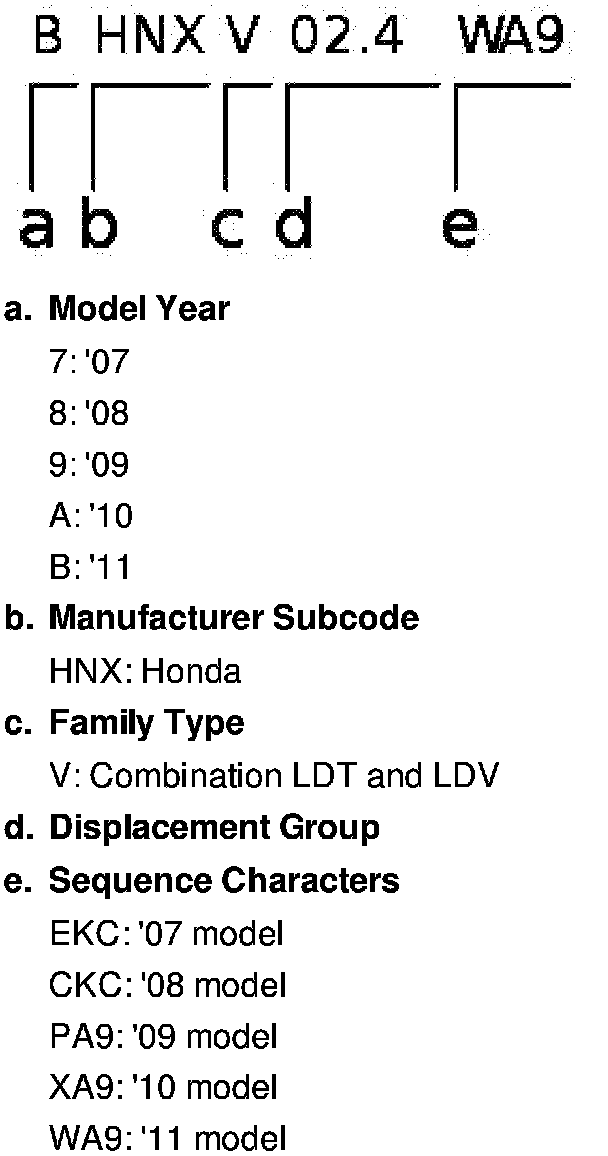

Test Group:

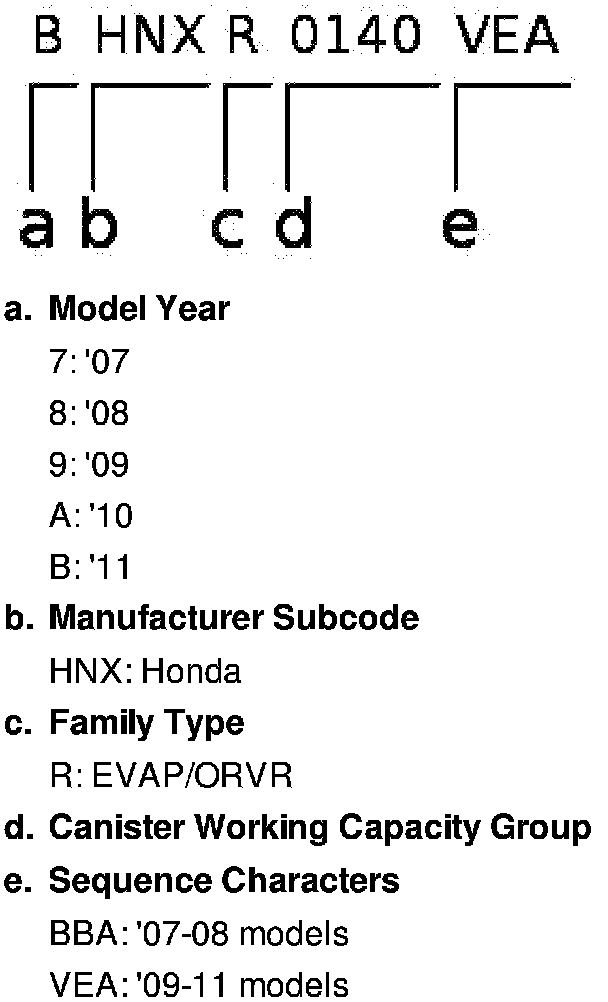

Evaporative Family:
