Fuel Pressure Regulator: Service and Repair

Fuel Pressure Regulator Replacement

1. Remove the fuel tank unit.

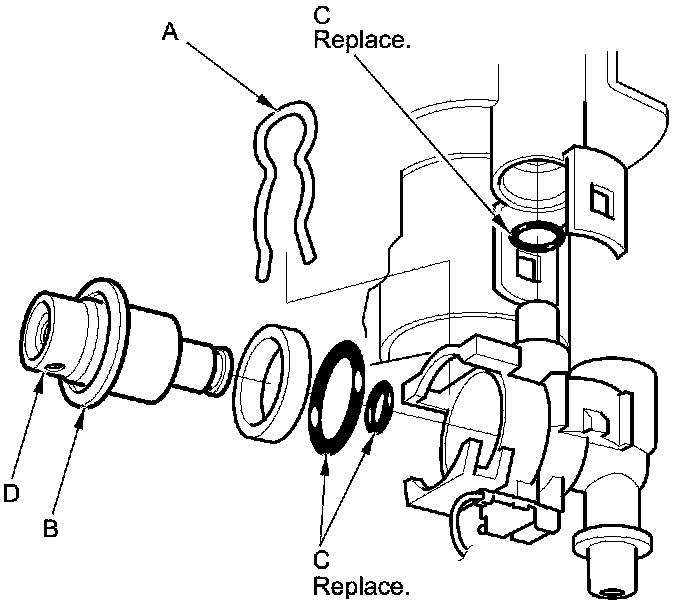

2. Remove the clip (A).





3. Remove the fuel pressure regulator (B).

4. Install the parts in the reverse order of removal with new O-rings (C).

Make sure the regulator is installed with the drain hole (D) facing down.

NOTE:

- Coat the O-rings with clean engine oil; do not use any other type oil and fluids.
- Do not pinch the O-rings during installation.
- Use new parts supplied in the pressure regulator replacement kit.
