CKP Sensor Replacement

CKP Sensor Replacement

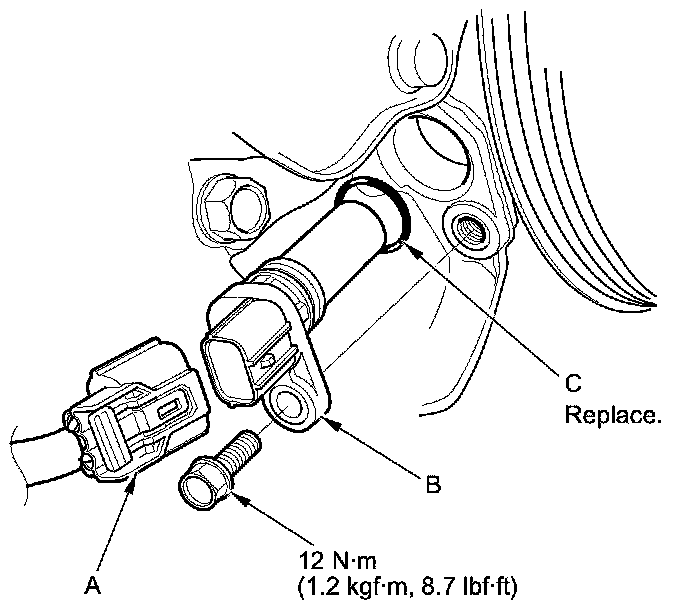

1. Disconnect the CKP sensor connector (A).





2. Remove the CKP sensor (B).

3. Install the parts in the reverse order of removal with a new O-ring (C) coated with clean engine oil.

4. Do the CKP pattern clear/CKP pattern learn procedure.
