Steering Angle Sensor: Service and Repair

Steering Angle Sensor Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair.

NOTE:

- Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.
- The illustration shows '07-08 models.

1. With the wheels in the straight ahead position and the steering wheel centered, then remove the steering wheel Steering Wheel Removal.

2. Remove the steering column covers Steering Column Removal/Installation and the cable reel Service and Repair.

3. Remove the combination switch assembly Steering Column Removal/Installation.

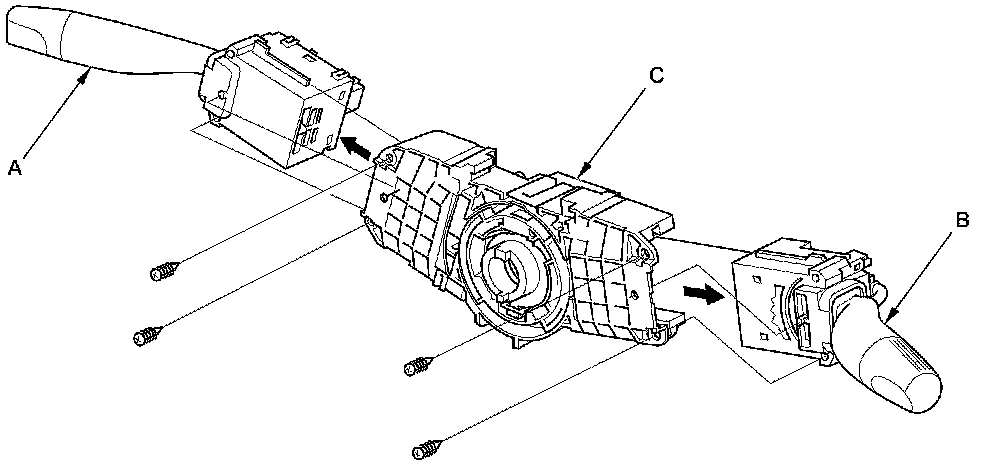

4. Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).





5. Install the combination switch body assembly in the reverse order of removal.

NOTE:

- Do not remove the steering angle sensor from the combination switch body assembly.
- When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up.
- Tighten the combination switch assembly/cable reel mounting screw in the proper sequence..
