Home
>>
Honda Truck
>>
2010
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>

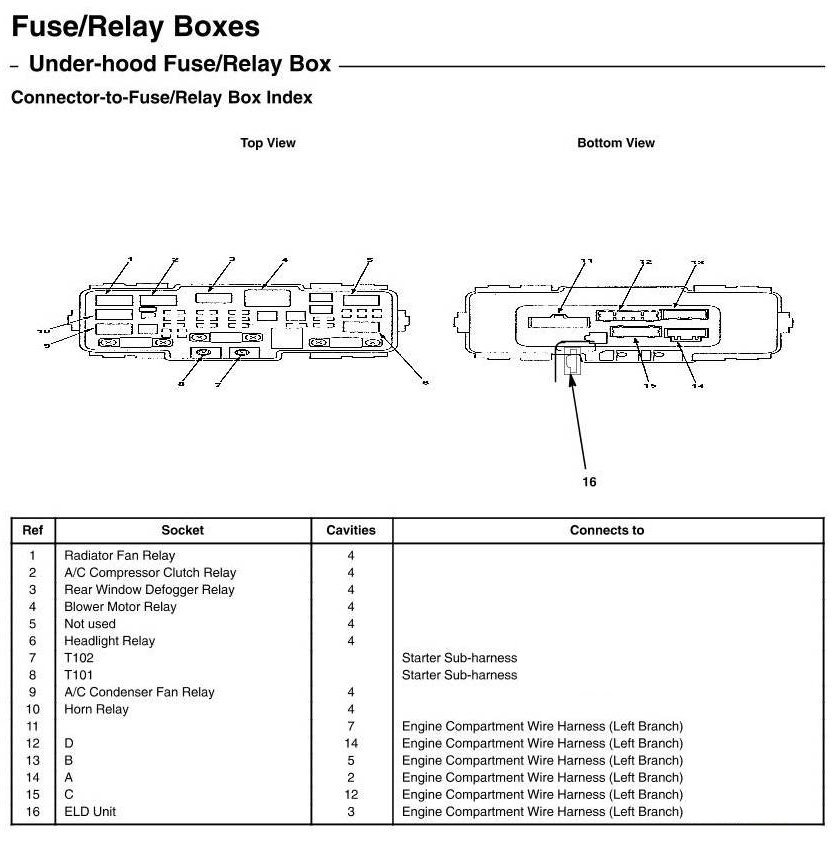

Under-hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
Under-hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
