Front Stabilizer Bar Replacement

Front Stabilizer Bar Replacement

1. Raise and support the vehicle Service and Repair.

2. Remove the front wheels.

3. Disconnect both sides of the stabilizer link from the stabilizer bar Front Stabilizer Link Removal/Installation.

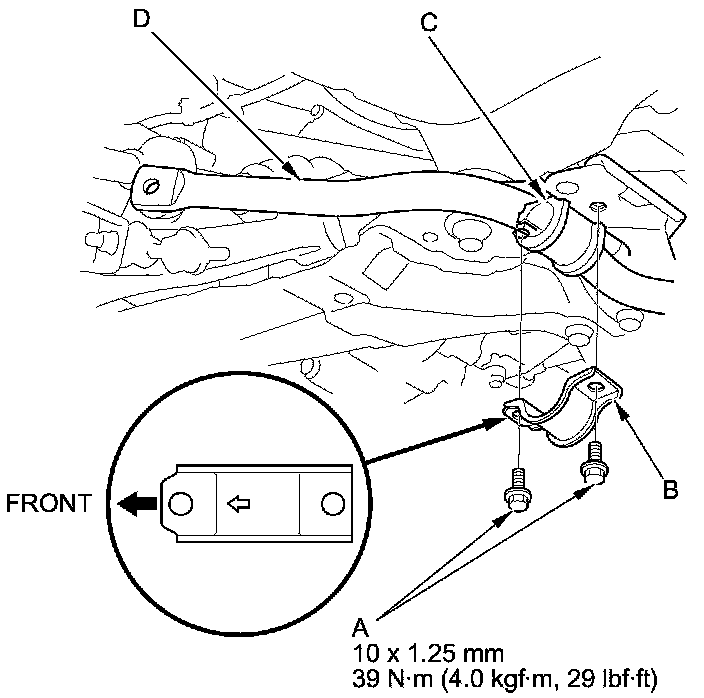

4. Remove the flange bolts (A) and the bushing holders (B), then remove the bushings (C) and the stabilizer bar (D).






5. Install the stabilizer bar in the reverse order of removal, and note these items:

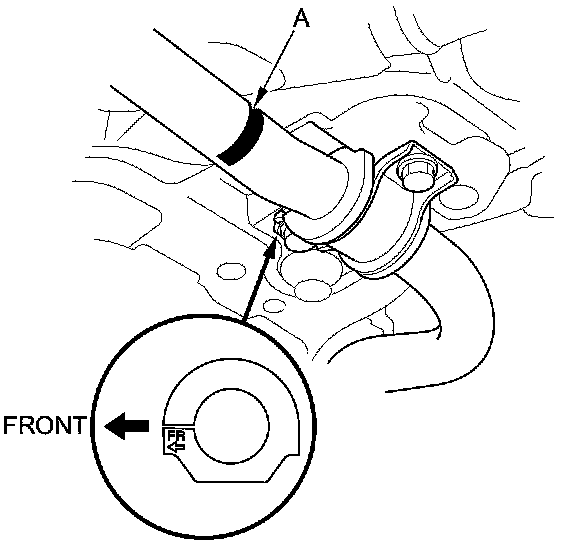

- Note the right and left direction of the stabilizer bar. The paint mark (A) on the stabilizer bar shows the right side (except SC model).
- Do not set the bushings on the bent or curved part of the stabilizer bar.
- Note the direction of installation for the bushings and the bushing holders.
- Refer to stabilizer link removal/installation to connect the stabilizer bar to the links Front Stabilizer Link Removal/Installation.
- Before installing the wheel, clean the mating surfaces between the brake disc and the inside of the wheel.
