A/T Differential Carrier Bearing Outer Race Replacement

A/T Differential Carrier Bearing Outer Race Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 78 x 90 mm 07GAD-SD40101
- Bearing Driver Attachment, 72 x 75 mm 07746-0010600

NOTE:

- Replace the bearing with a new one whenever the outer race is replaced.
- Do not use the thrust shim on the torque converter housing.
- Adjust bearing preload after replacing the bearing and the outer race.
- Coat all parts with ATF during installation.
- The illustration shows the 4WD transmission; the 2WD transmission is similar.

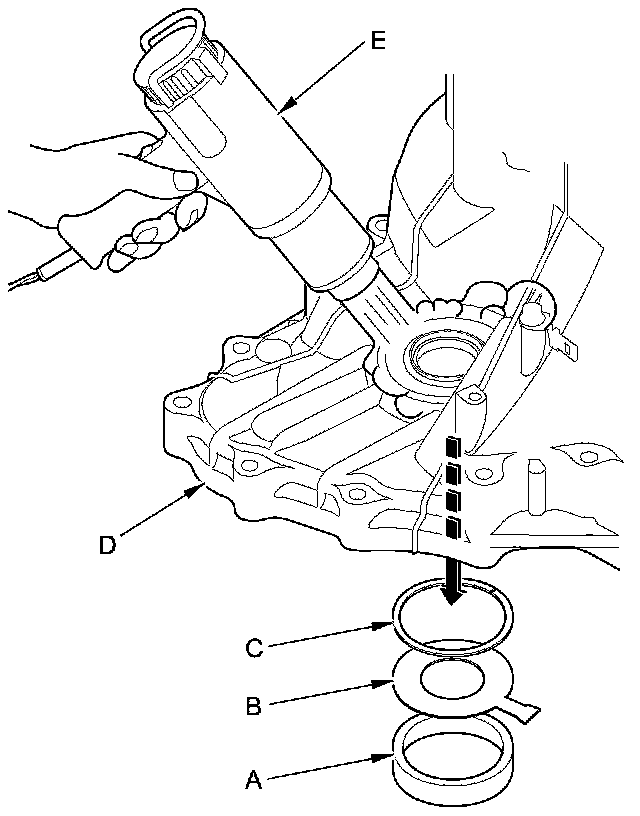

1. Remove the bearing outer race (A), the 76.2 mm thrust washer (B), and the 76 mm thrust shim (C) from the transmission housing (D) by heating the transmission housing to about 212 °F (100 °C) using a heat gun (E). Do not heat the transmission housing more than 212 °F (100 °C).

NOTE: Let the transmission housing cool to room temperature before installing the bearing outer race.

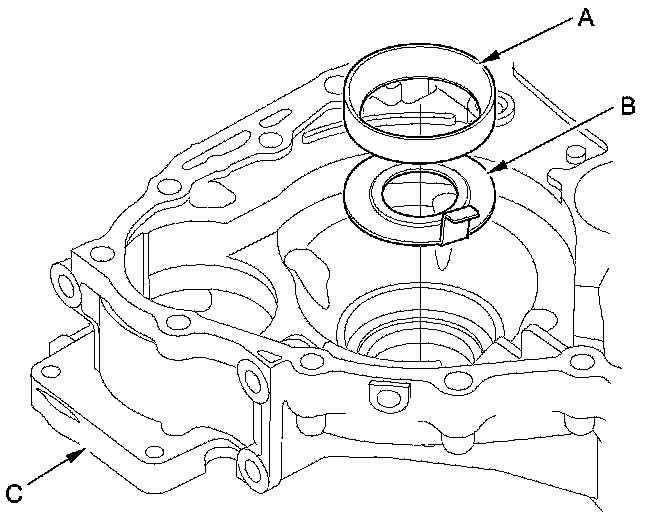

2. Remove the bearing outer race (A) and the 80 mm thrust washer (B) from the torque converter housing (C).





3. Install the 80 mm thrust washer and a new bearing outer race in the torque converter housing.

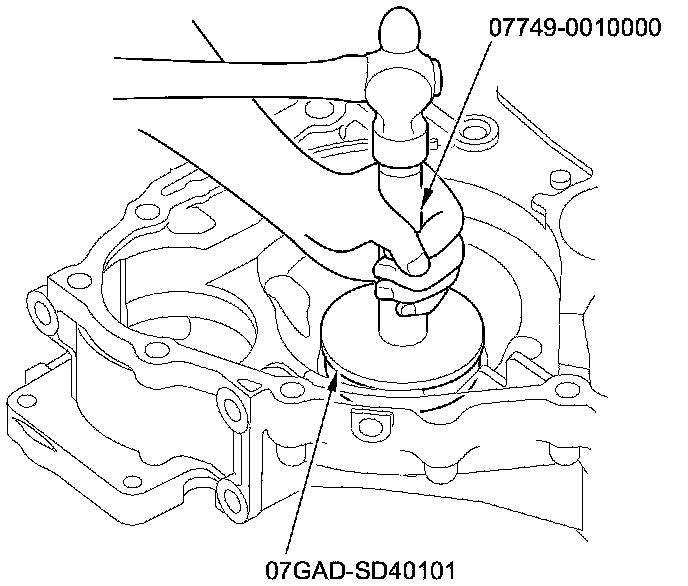

4. Install the bearing outer race securely in the torque converter housing using the driver handle and the 78 x 90 mm attachment.

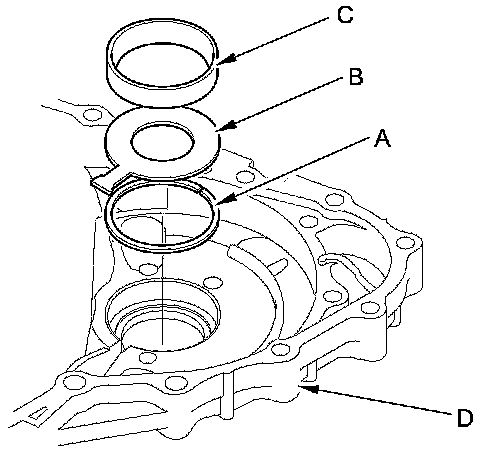

5. Install the 76 mm thrust shim (A), the 76.2 mm thrust washer (B), and a new bearing outer race (C) in the transmission housing (D).

NOTE: Be sure to install the 76.2 mm thrust washer with the "41382RKY" mark facing downward.

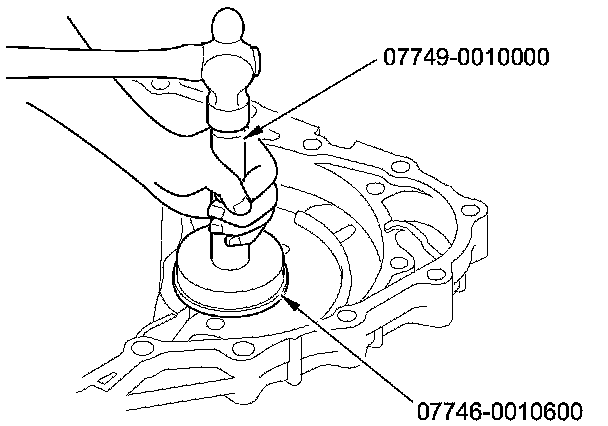

6. Install the bearing outer race securely so there is no clearance between the bearing outer race, the 76.2 mm thrust washer, the 76 mm thrust shim, and the transmission housing, using the driver handle and the 72 x 75 mm attachment.
