A/T Secondary Shaft 2nd Gear Axial Clearance Inspection (A/T)

A/T Secondary Shaft 2nd Gear Axial Clearance Inspection

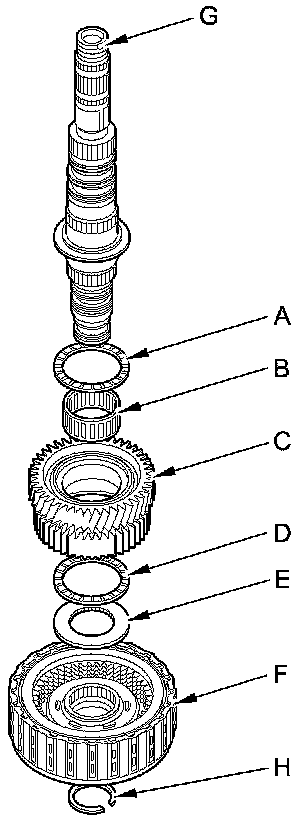

1. Install the thrust needle bearing (A), the needle bearing (B), 2nd gear (C), the thrust needle bearing (D), the 37 x 58 mm thrust washer (E), and the 2nd clutch (F) on the secondary shaft (G), then secure them with the set ring (H). Do not install the O-rings during inspection.

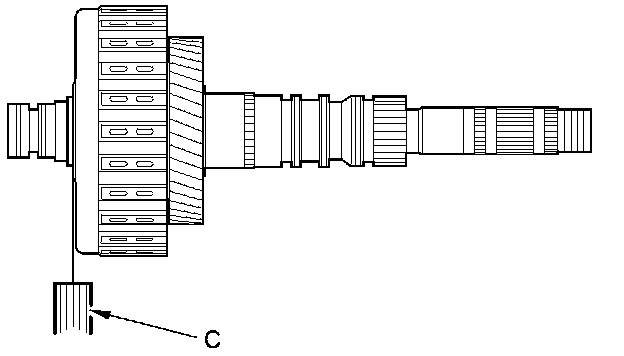

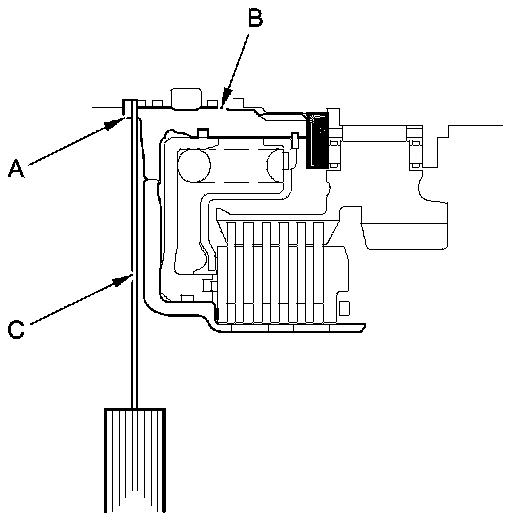

2. Measure the clearance between the set ring (A) and the 2nd clutch guide (B) with a feeler gauge (C), in at least three places. Use the average as the actual clearance.













3. If the clearance is out of the standard, remove the 37 x 58 mm thrust washer, and measure its thickness.

4. Select and install a new thrust washer, then recheck.

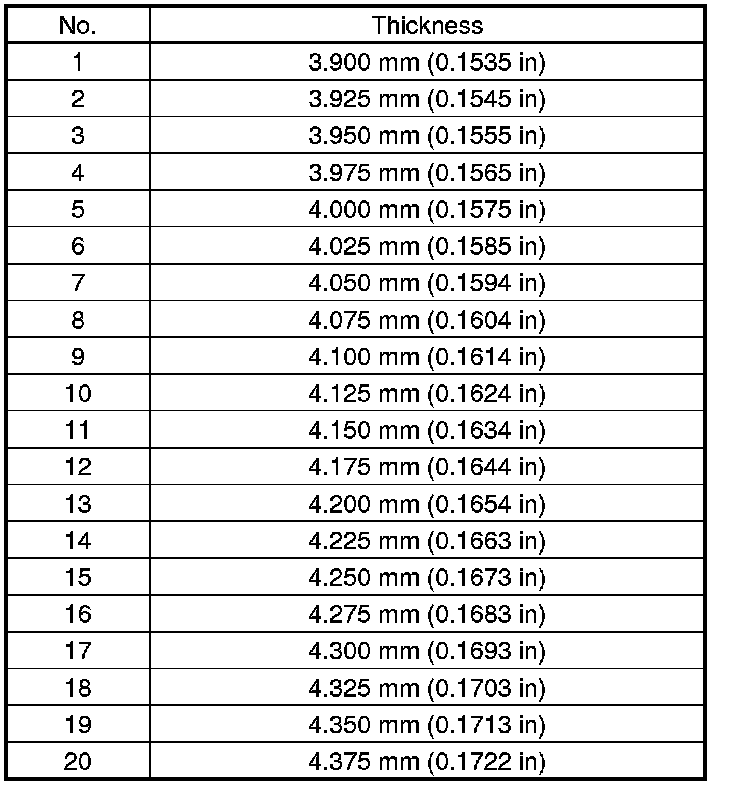

THRUST WASHER, 37 x 58 mm





5. After replacing the thrust washer, make sure the clearance is within the standard.

6. Disassemble the installed parts from the secondary shaft.
