Torque Converter Housing Selector Control Shaft Oil Seal Replacement

Torque Converter Housing Selector Control Shaft Oil Seal Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment 07947-ZV00100

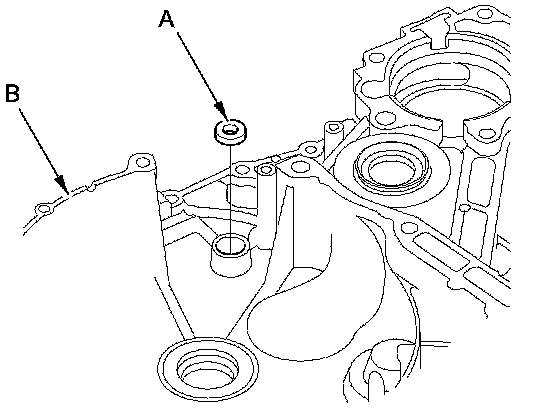

1. Remove the oil seal (A) from the torque converter housing (B).

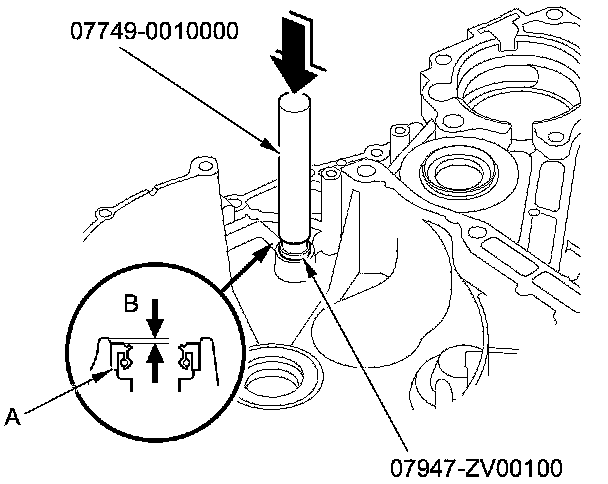

2. Install a new oil seal (A) in the torque converter housing to a depth (B) of 0.5-1.5 mm (0.02-0.06 in) below the torque converter housing surface using the driver handle and the oil seal driver attachment.
