Transmission End Cover Selector Control Shaft Bearing Replacement

Transmission End Cover Selector Control Shaft Bearing Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 22 x 24 mm 07746-001A800

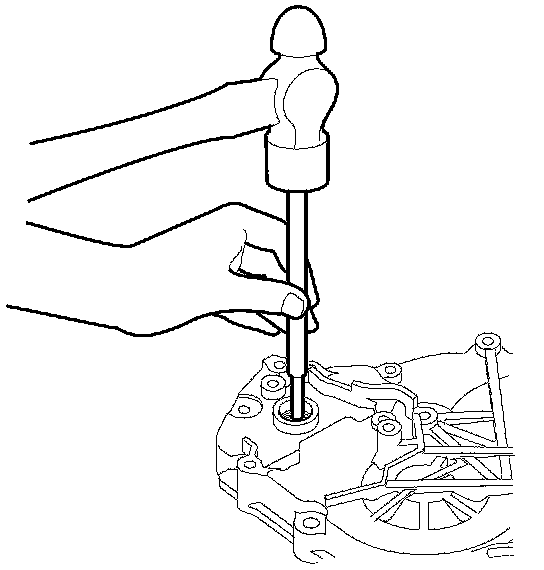

1. Remove the oil seal from the end cover, then remove the bearing.

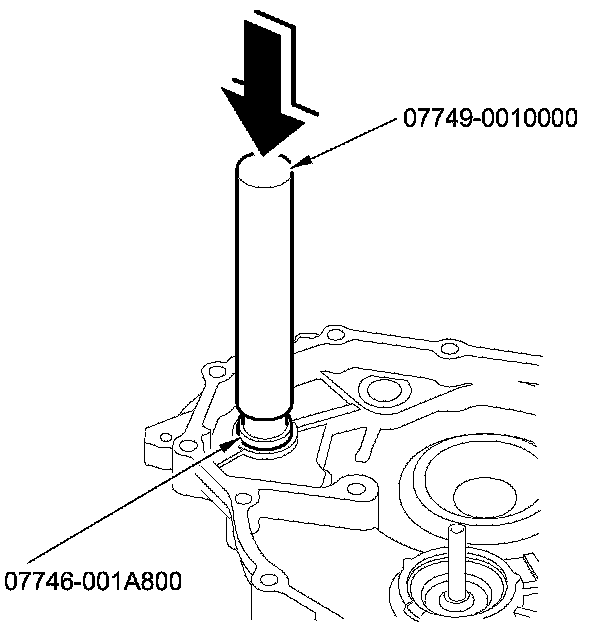

2. Install a new bearing flush with the end cover using the driver handle and the 22 x 24 mm attachment.





3. Install a new oil seal.
