Clutch Pedal Assembly: Service and Repair

Clutch Pedal Assembly Replacement

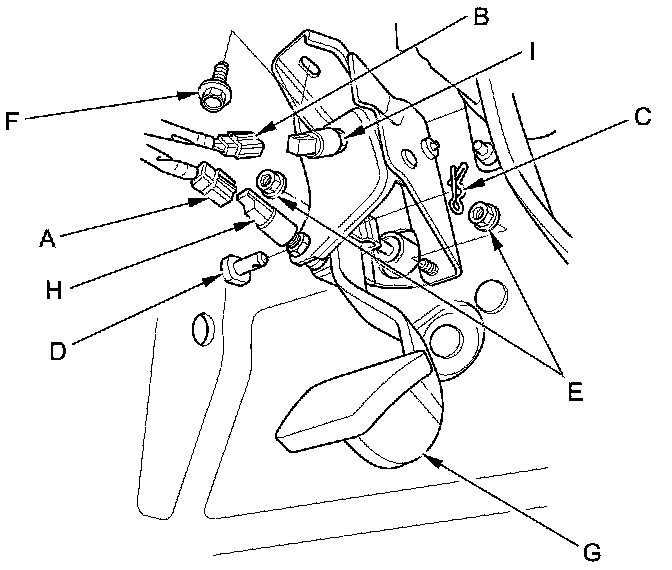

1. Disconnect the clutch pedal position switch connector (A) and the clutch interlock switch connector (B).





2. Pry out the lock pin (C), and pull the clevis pin (D) out of the clevis.

3. Remove the master cylinder mounting nuts (E) and the clutch pedal mounting bolt (F).

4. Remove the clutch pedal assembly (G).

5. Remove the clutch pedal position switch (H) and the clutch interlock switch (I).

6. Loosely install the clutch pedal position switch and the clutch interlock switch onto the new clutch pedal.

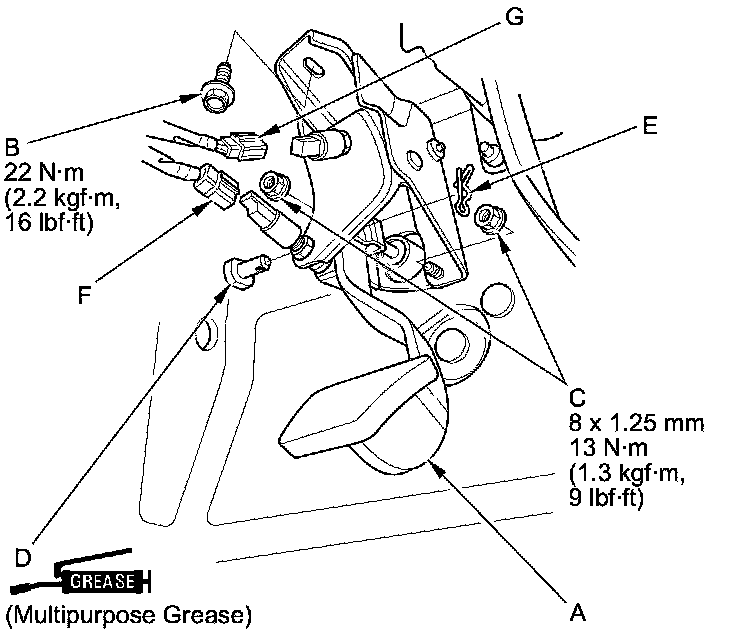

7. Install the clutch pedal assembly (A).





8. Install the clutch pedal mounting bolt (B) and the master cylinder mounting nuts (C).

9. Apply multipurpose grease to the clevis pin (D), and slide it into the clevis, then install the lock pin (E).

10. Adjust the clutch pedal, the clutch pedal position switch, and the clutch interlock switch Adjustments.

NOTE: Connect the clutch pedal position switch connector (F) and clutch interlock switch connector (G) after adjusting them.

11. Check the clutch operation.
